1302L 13" Touchscreen Monitor
Elo’s 1302L
Touchscreen Monitor

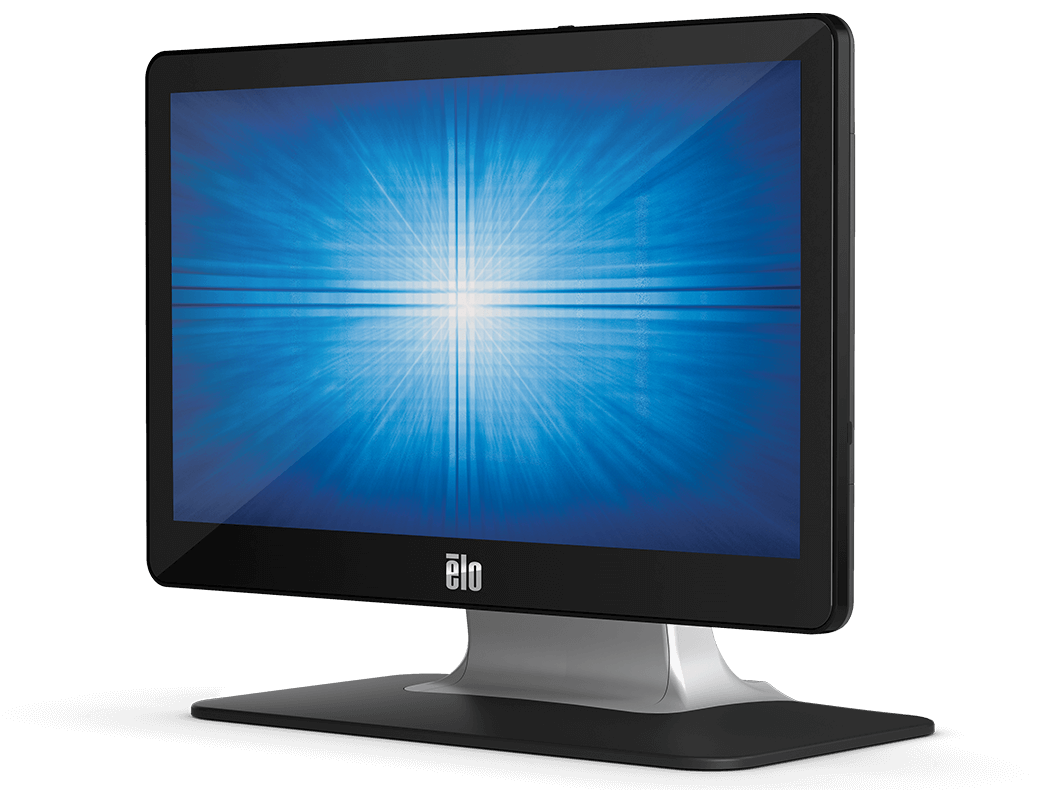

The Elo 1302L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1302L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1302L is the first of its kind in the commercial market, providing a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.

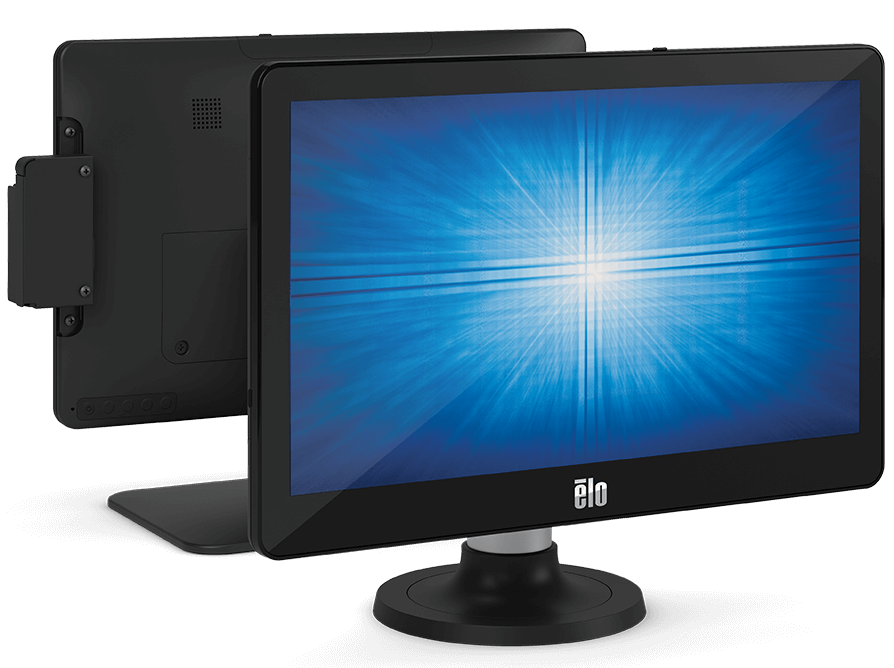

One for You.
One for Your Customers.
The 1302L offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
-
Retail
-
Hospitality
-
Government
-
Restaurant
-
Industrial
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
-
EMV Cradles
The ability to take payment is essential to complete a transaction. The 1302L offers compatible EMV cradles to securely mount an EMV Payment device directly to the display.
-
Barcode Scanner
Enhance POS terminals and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
-
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Mount with Flexibility

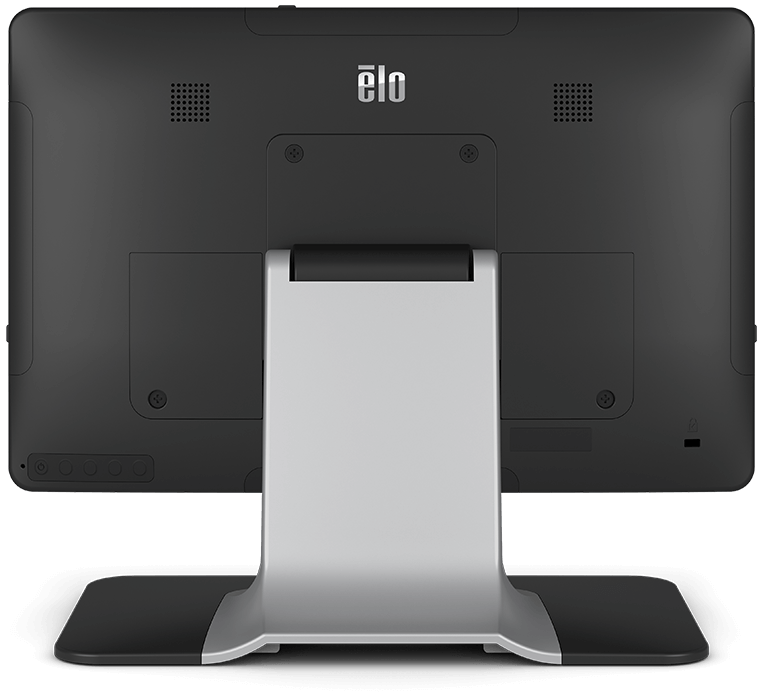

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

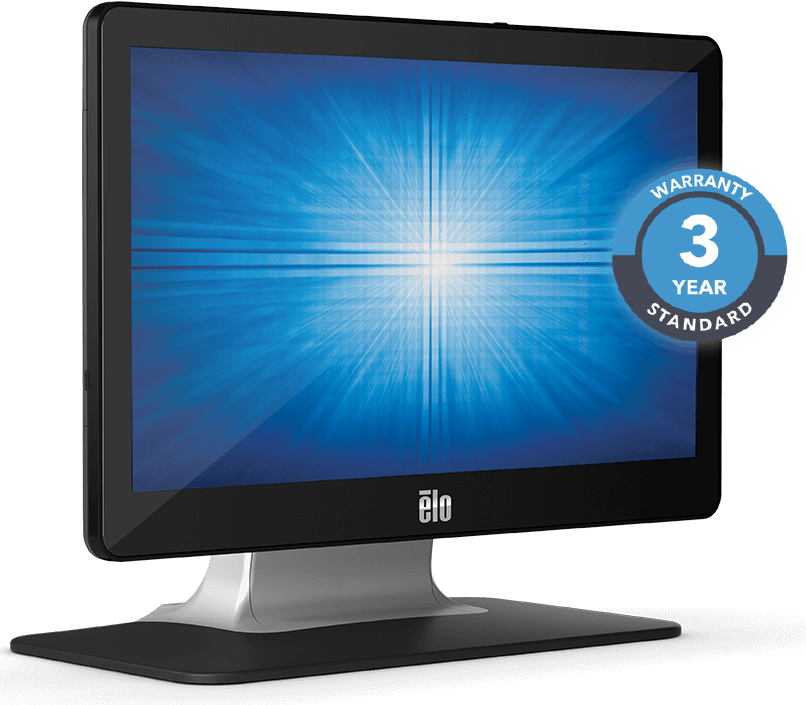

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build, and stand by the complete solution, with touch integrated from the start.
Specifications
-
Technical
Part Number(s)
Black With Stand (Worldwide) - E683204
Black Without Stand (Worldwide) - E683595
White With Stand (Worldwide) - E683396
White Without Stand (Worldwide) - E683787Enclosure Color
White or Black
Touch Technology & Capacity
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
13.3'' diagonal, Active matrix TFT LCD
Aspect Ratio
16:9
Active Area
11.57" x 6.51" / 293.76 mm x 165.24 mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
720 x 576 50Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 800 60Hz, 60Hz RB
1280 x 960 60Hz
1280 x 1024 60Hz
1360 x 768 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60HzViewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
16.7 million
Brightness (typical)
Panel: 300 nits; TouchPro PCAP: 270 nits
Response Time-total (typical)
25 msec
Contrast Ratio
800:1
Touch Interfaces
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,
Lockouts: OSD, PowerI/O Ports
1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port)
1 x Audio jack (Line-in)
1 x VGA
1 x HDMI
1 x 12V D/C input
4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripheralsSpeakers
2 x 1W
Video_1
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA
USB Type-CInput Video Frequency
Horizontal: 30 – 75K KHz
Vertical: 60HzPower
Option 1 - USB Type-C Input voltage range: 5V±5% 3A / 9V±5% 3A / 15V±5% 1.8A / 20V±5% 1.35A
Option 2 - External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 HzPower Consumption (Typical)
Monitor + adapter
ON: 8.2W
SLEEP: 1.2W
OFF: 0.18WMonitor Dimensions (without Stand)
8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm
Monitor Dimensions (with Stand)
10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm
Shipping Box Dimensions
Without Stand: 11.02" x 15.95" x 6.30" / 280 mm x 405 mm x 160 mm
With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mmWeight (Unpackaged)
Without Stand: 2.69 lbs / 1.22 kg
With Stand: 5.11 lbs / 2.32 kgWeight (Packaged)
Without Stand: 6.37 lbs / 2.89 kg
With Stand: 10.19 lbs / 4.62 kgOperating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 75mm x 75mm (4-hole)
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC
Europe CE
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico NOM
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE, REACH
Russia EAC
India BISIngress Protection
IPX1 for front side
Impact Protection
IK07
What's in the Box
Touchmonitor
HDMI cable
Touch USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
3x Tie wraps
2x screws for cable cover(s)Optional PCAP Stylus Pen
E066148
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Barcode Reader (BCR) – Elo P/N: E093433
Customer Display (2x20 VFD) – Elo P/N: E001003
2D Barcode Scanner – Elo P/N: E926356
PCAP Stylus Pen - Elo P/N: E066148
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
RFID - Elo P/N: E673037
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780Stands, Mounts & Kits
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
Elo Stand 1302L - Black (75 mm VESA) - Install all cables before mounting to the stand - Elo P/N: E307788
Elo Stand 1302L - White (75 mm VESA) - Install all cables before mounting to the stand - Elo P/N: E307974
Wallaby™ POS Stand (Black) - Elo P/N: E949536
Wallaby™ POS Stand (White) - Elo P/N: E353758
USB-C to USB-C Cable Kit – Elo P/N: E710364
VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
DVI-D to HDMI Cable Kit – Elo P/N: E538507
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
