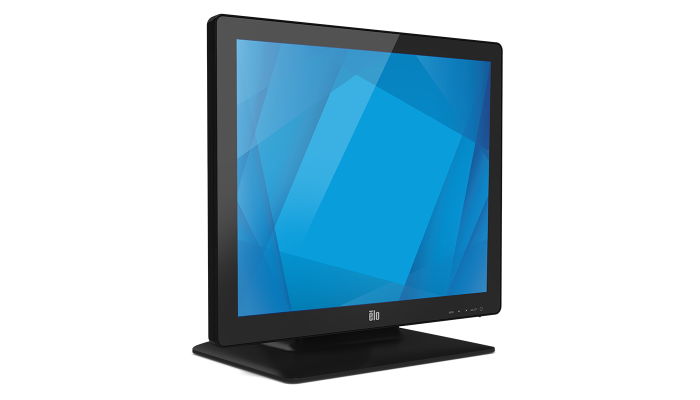

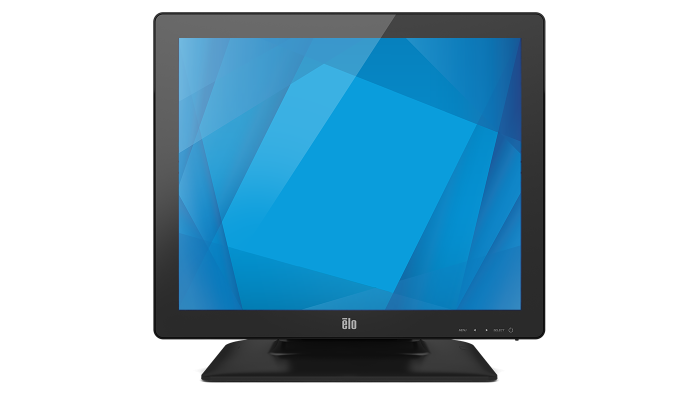

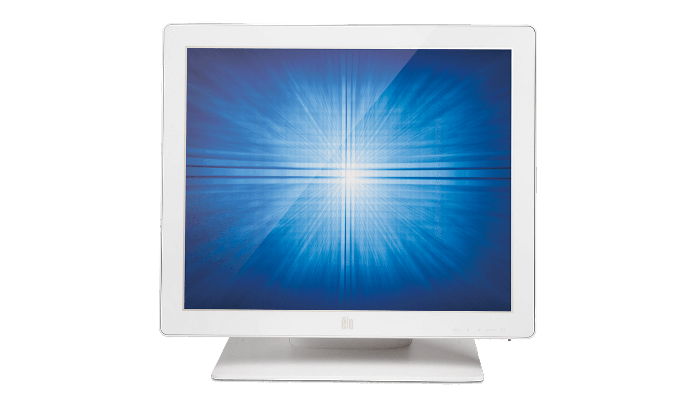

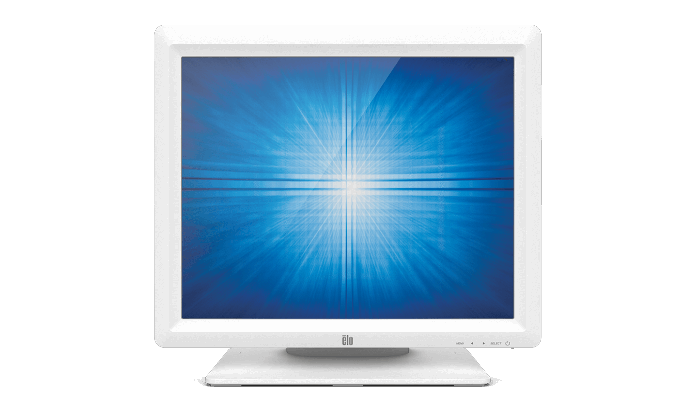

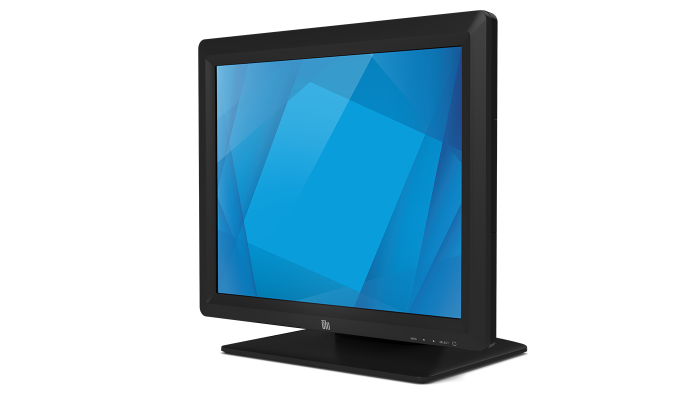

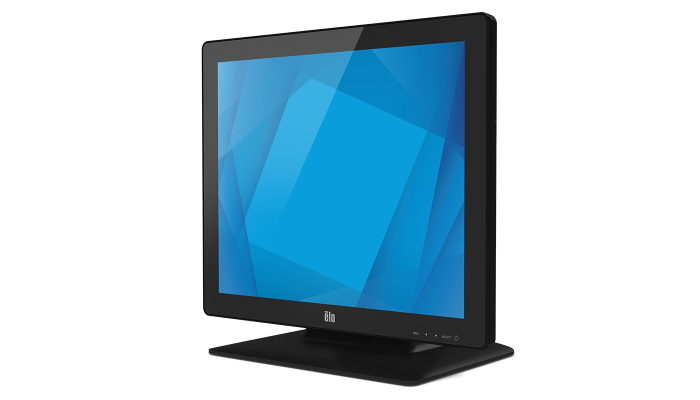

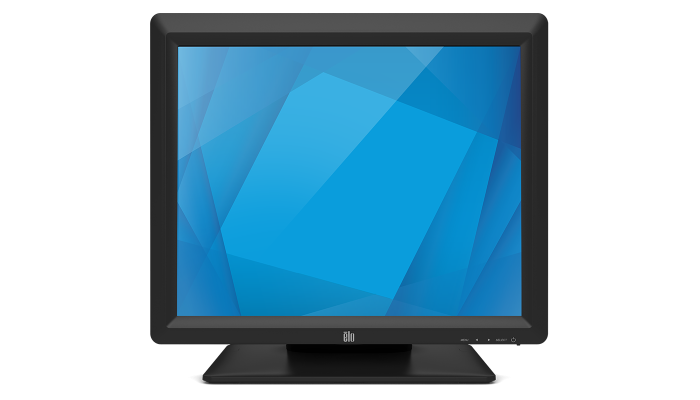

1517L 15" Touchscreen Monitor
How to Buy

Overview

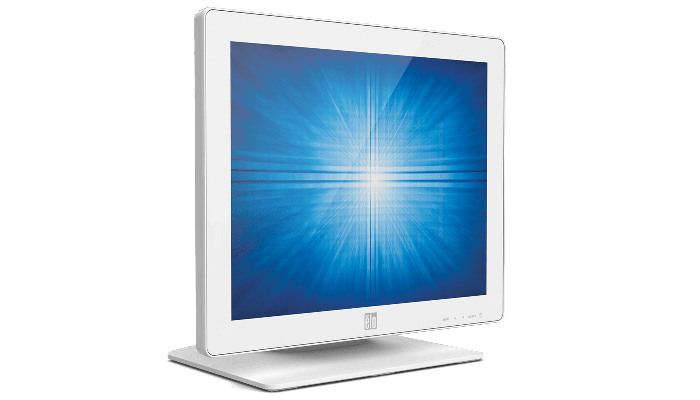

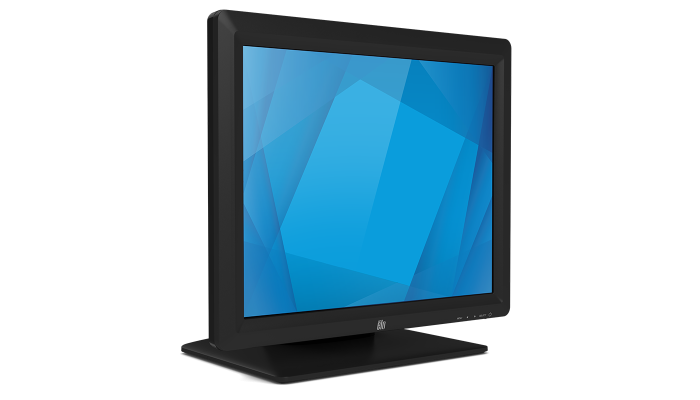

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch.

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.

 Image of item
Image of item
MSR ready.

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.

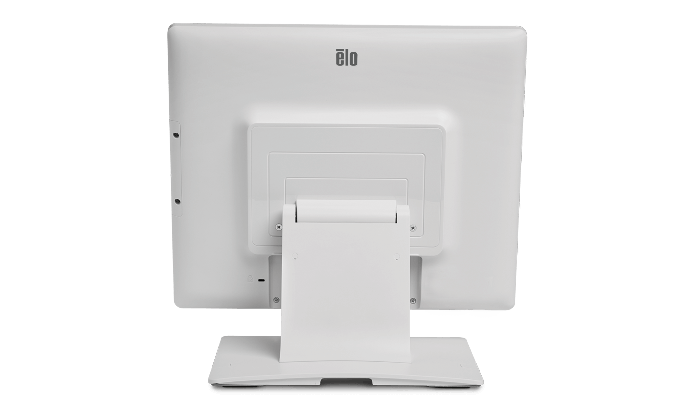

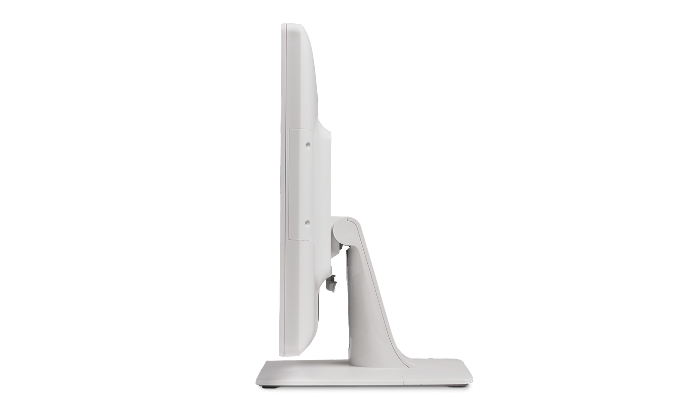

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

 Image of item
Other features.
  • Sleek and thin design with built-for-touch reliability
  • Flexible and space-saving
  • 60% Energy savings using LED technology
  • Sealed touchscreen against dirt, dust and liquids
  • Removable base and mounting options including VESA, wall and pole-mounting
  • USB and RS232 serial connections
  • Typical power consumption: 12W, internal and external power options
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch Black (Worldwide) - E344758
    IntelliTouch ZB Black Antiglare (Worldwide) - E273226
    IntelliTouch ZB Black (Worldwide) - E829550
    AccuTouch Black (Worldwide) - E523163
    AccuTouch ZB Black (Worldwide) - E144246

    Enclosure Color

    Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    4:3

    Active Area

    11.97" x 8.98" / 304.13 mm x 228.10 mm

    Resolution

    1024 x 768 @ 60Hz, 75Hz

    Other Supported Resolutions

    640 x 480 60Hz, 75Hz
    720 x 400 70Hz
    800 x 600 56Hz, 60Hz, 75Hz
    1024 x 768 60Hz, 75Hz

    Viewing Angle

    Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 270 nits

    Response Time-total (typical)

    23 msec

    Contrast Ratio

    800:1

    Touch Interface

    Serial (RS232) and USB

    On Screen Display

    Accessible through switches along the bottom.

    Controls: Menu, Up, Down, Select, Power

    Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    I/O Ports

    VGA
    HDMI
    DC jack
    AC jack
    USB Type B
    RS-232 (DB-9)

    Video_1

    Analog VGA on Female DB-15 connector
    Digital HDMI on Type A receptacle

    Input Video Horizontal Sync frequency range: 31.5 – 60KHz
    Input Video Vertical Sync (frame rate) frequency range: 56-75Hz

    Power

    Monitor AC input power connector: IEC 60320 C6
    Monitor AC input voltage specifications: 100-240VAC, 50/60Hz.

    Monitor DC input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter)
    Monitor DC input voltage specifications: 12VDC +/- 5%

    Power Consumption (Typical)

    Monitor Only
    ON: 10.5W
    SLEEP: 1.40W
    OFF: 0.3W

    Monitor Dimensions (without Stand)

    Bezel: 14.1" x 1.97" x 12.5" / 358 mm x 50 mm x 319
    Zero Bezel: 14.1" x 1.73" x 12.5" / 358 mm x 44.1 mm x 319 mm

    Monitor Dimensions (with Stand)

    14.1" x 7.8" x 12.5" / 358 mm x 197 mm x 319 mm

    Shipping Box Dimensions

    19.2" x 9.1" x 19.1" / 487 mm x 231 mm x 485 mm

    Weight (Unpackaged)

    9.48 lbs / 4.3 kg

    Weight (Packaged)

    16.09 lbs / 7.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 95%

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 75mm mounting interface on rear of unit
    3-hole threaded mounting on bottom of stand

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Argentina S-mark
    Australia RCM
    Canada cUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Japan VCCI
    Korea KCC, e-Standby
    Mexico NOM
    Taiwan BSMI Mark
    United States UL, FCC
    International CB
    RoHS, China RoHS, WEEE

    What's in the Box

    Touch monitor
    Quick Install Guide
    VGA Cable (DB-15 male to DB-15 male)
    Touch USB Cable (USB Type A plug to USB Type B plug)
    Power cable, IEC 60320-C5 to NA/EU plug
    Stand Base assembly
    Filler Plate
    HDMI cable

    Optional Peripherals

    Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356
    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    Australia power adapter and cable kit - Elo P/N: E637593

    Stands, Mounts & Kits

    1517L VESA Mount Plate (White) - Elo P/N: E000420
    1517L VESA Mount Plate (Black) - Elo P/N: E000404
    1517L Replacement Stand (White) - Elo P/N: E483197
    1517L Replacement Stand (Black) - Elo P/N: E264383
    China AC power cable – Elo P/N: E501749
    UK AC power cable – Elo P/N: E102073
