1715L 17" Touchscreen Monitor
How to Buy

Overview

The Elo 1715L 17-inch standard format touchscreen monitor delivers professional-grade built-for-touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1715L offers flexibility for mounting and three touch technology options.

Flexible mounting.

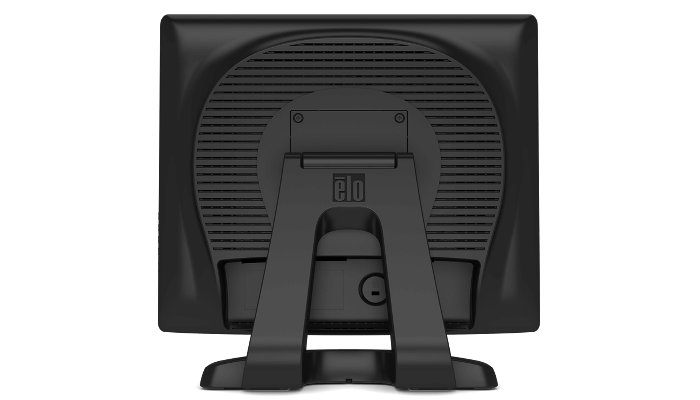

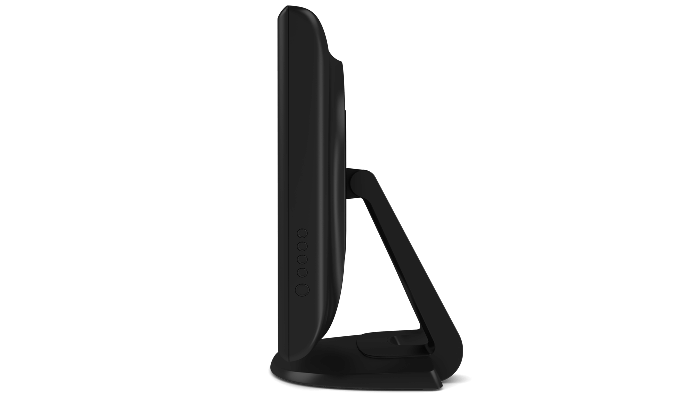

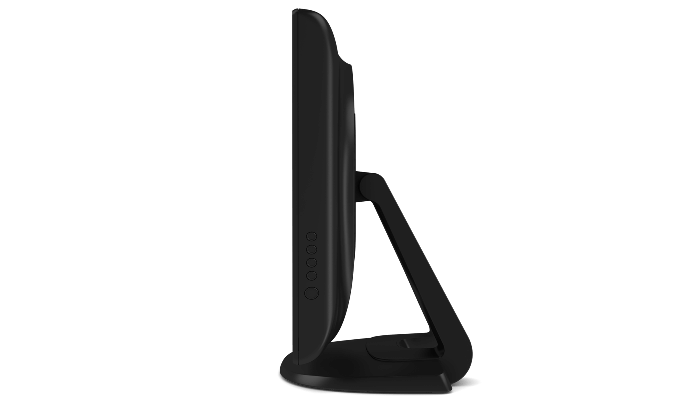

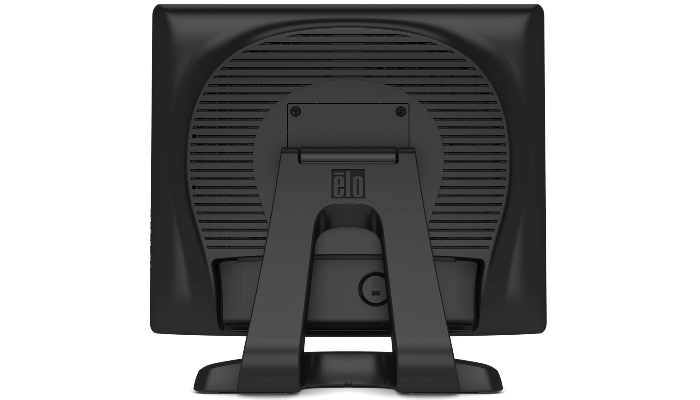

The Elo 1715L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand.

 Image of item
Image of item
Integrated touch.

The 17-inch touchscreen monitor features AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.
Other features.
  • Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
  • Designed for touch features such as a stable tilt stand
  • Long-lasting product cycle
  • Sealed touchscreen against dirt, dust and liquids
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Digital on-screen display (OSD)
  • Worldwide agency approvals
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch (Americas, EMEA) - E719160
    AccuTouch (Americas, EMEA) - E603162

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    17'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    13.3" x 10.6" / 338mm x 270mm

    Resolution

    1280 x 1024

    Other Supported Resolutions

    640 x 480 66 Hz
    640 x 480 60, 72, 75 Hz
    720 x 350 70 Hz
    720 x 400 70 Hz
    800 x 600 56, 60, 72, 75 Hz
    832 x 624 75 Hz
    1024 x 768 65 Hz
    1024 x 768 60, 70, 75 Hz
    1152 x 864 75 Hz
    1280 x 960 60 Hz
    1280 x 1024 60, 75 Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Response Time-total (typical)

    20 msec

    Contrast Ratio

    1000:1

    Power

    Internal AC, power connector-C6 type
    Input voltage range: 100-240VAC, 50/60Hz

    Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth)

    Monitor input power signal specifications: 12VDC +/- 5%

    Video_1

    VGA (VGA DE-15 (DB-15) Male connecter cable included)

    Input Video Horizontal Sync frequency range: 31.5 – 80 KHz
    Input Video Vertical Sync (frame rate) frequency range: 56.3 - 75Hz

    Power Consumption (Typical)

    Monitor only:
    ON: 10.52 W
    SLEEP: 1.34 W
    OFF: 0.3 W

    I/O Ports

    VGA
    DC jack
    AC jack
    USB Type B
    RS232 (DB-9)

    On Screen Display

    Accessible through switches along the bottom.

    Controls: Menu, Power, Up, Down, Select

    Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Monitor Dimensions (without Stand)

    13.0" x 15.4" x 2.44" / 331 mm x 391 mm x 62 mm

    Monitor Dimensions (with Stand)

    14.4" x 15.4" x 8.0" / 366 mm x 391 mm x 203 mm

    Shipping Box Dimensions

    10.2" x 19.4" x 17.6" / 260 mm x 494 mm x 448 mm

    Weight (with stand)

    15.2 lb / 6.9 kg

    Shipping Weight (With stand)

    21.2 lb / 9.6 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada CUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Korea KCC
    Taiwan BSMI
    United States FCC, UL
    Japan VCCI
    International CB
    Australia RCM
    Russia EAC
    Mexico NoM
    RoHS, China RoHS, WEEE, REACH

    What's in the Box

    Touch monitor
    Quick Install Guide
    3x Tie wraps
    VGA cable
    Touch USB cable
    NA Power cable
    EU Power cable
    EEI Label

    Optional Peripherals

    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    Australia power adapter and cable kit - Elo P/N: E637593

Configurations

(2)

Refine your search:
Compare Compare
Image of item
E603162 (Americas, EMEA)
  • Dark Gray
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
Compare Compare
Image of item
E719160 (Americas, EMEA)
  • Dark Gray
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
