1915L 19" Touchscreen Monitor
How to Buy

Overview

The Elo 1915L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1915L can be used in a wide variety of environments with its ability to register inputs from a finger, gloved hand or soft stylus with a fast and accurate response. The touchmonitor is available with Elo’s industry-leading touch technologies and multiple mounting options to support most application uses.

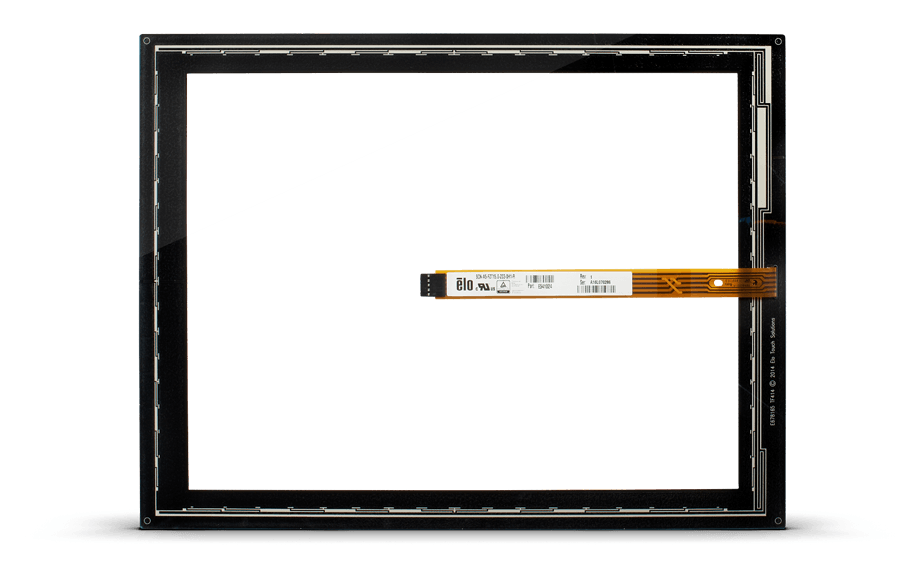

Integrated touch.

The 1915L desktop LCD touchmonitor is available with a choice of Elo's single touch AccuTouch® five-wire resistive or IntelliTouch® surface acoustic wave (SAW) , both with a dual serial/ USB touch interface.

 Image of item
Image of item

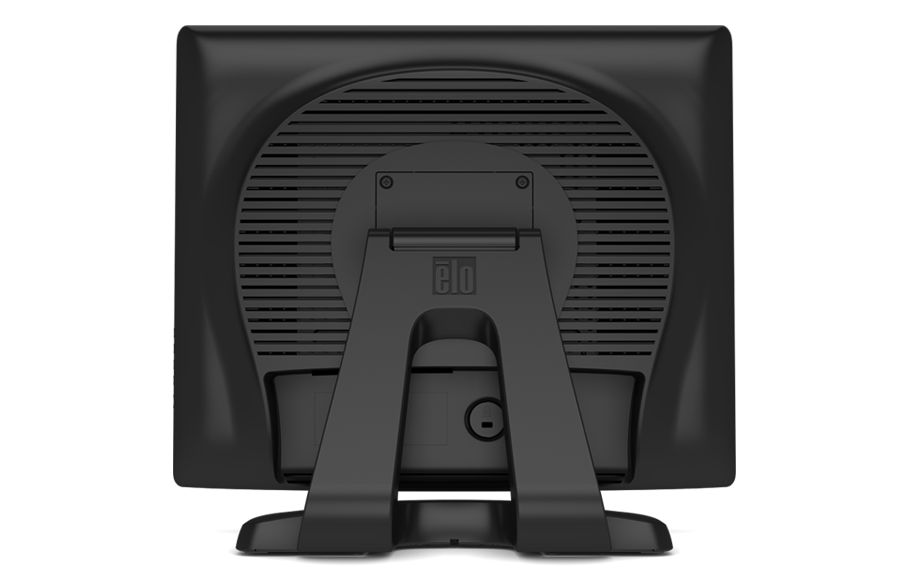

Flexible mounting.

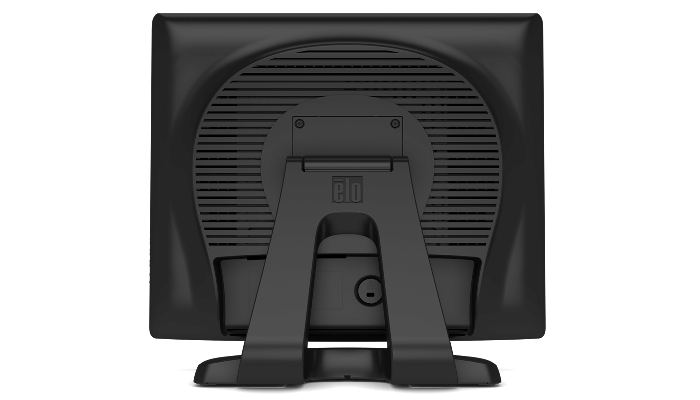

The Elo 1915L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.

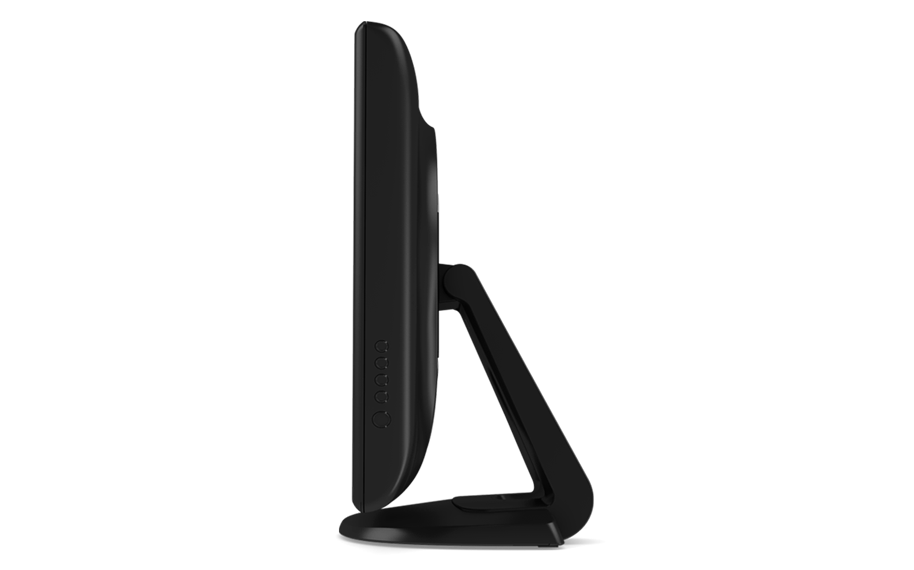

Commercial grade.

The 1915L touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

 Image of item
Other features.
  • Affordability paired with Elo quality OR Consumer-grade pricing with Elo commercial-grade reliability
  • Designed for touch features such as a stable tilt stand
  • Long-lasting product cycle
  • Sealed touchscreen against dirt, dust and liquid
  • Dual serial/USB interface
  • Removable stand and VESA mounting option
  • Mounting holes on stand bottom for tabletop security
  • Controls on the side rather than the front, plus lockout function for public use
  • Digital on-screen display (OSD)
  • Worldwide agency approvals
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch - E266835
    AccuTouch - E607608

    Enclosure Color

    Dark Gray

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    19'' diagonal, Active matrix TFT LCD (LED)

    Aspect Ratio

    5:4

    Active Area

    14.8" x 11.9" / 376.3mm x 301.1mm

    Resolution

    1280 x 1024

    Other Supported Resolutions

    1280 x 1024 at 60 or 75 Hz
    1152 x 864 at 75 Hz
    1024 x 768 at 60, 65, 70 or 75 Hz
    832 x 624 at 75 Hz (Mac)
    800 x 600 at 56, 60, 72 or 75 Hz
    720 x 400 at 70 Hz
    720 x 350 at 70 Hz
    640 x 480 at 60, 66, 72 or 75 Hz

    Viewing Angle

    Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Response Time-total (typical)

    14 msec

    Contrast Ratio

    1000:1

    Power

    Internal AC, power connector-C6 type
    Input voltage range: 100-240VAC, 50/60Hz

    Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth)

    Monitor input power signal specifications: 12VDC +/- 5%

    Video_1

    VGA (VGA DE-15 (DB-15) Male connecter cable included)

    Input Video Horizontal Sync frequency range: 31.5 – 80KHz
    Input Video Vertical Sync (frame rate) frequency range: 56.3-75Hz

    Power Consumption (Typical)

    Monitor only:
    ON: 12.76W
    SLEEP: 1.33W
    OFF: 0.3W

    I/O Ports

    VGA
    DC jack
    AC jack
    USB Type B
    RS232 (DB-9)

    On Screen Display

    Accessible through switches along the bottom.

    Controls: Menu, Power, Up, Down, Select

    Settings: Auto Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information

    Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

    Lockouts: OSD, Power

    Monitor Dimensions (without Stand)

    IT: 14.1" x 16.9" x 2.54" / 359 mm x 429 mm x 64.5 mm
    AT: 14.1" x 16.9" x 2.44" / 359 mm x 429 mm x 62 mm

    Monitor Dimensions (with Stand)

    15.4" x 16.9" x 8.3" / 390 mm x 429 mm x 212 mm

    Shipping Box Dimensions

    21.28" x 19.50" x 11.23"/ 540 mm x 495 mm x 285 mm

    Weight (Unpackaged)

    17.4 lb / 7.9 kg

    Weight (Packaged)

    25.8 lb / 11.7 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)

    MTBF

    50,000 hours demonstrated

    Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    Canada CUL, IC
    China CCC
    Europe CE
    United Kingdom UKCA
    Korea KCC
    Taiwan BSMI
    United States FCC, UL
    Japan VCCI
    International CB
    Australia RCM
    Russia EAC
    Mexico NoM
    RoHS, China RoHS, WEEE, REACH

    What's in the Box

    Touch monitor
    Quick Install Guide
    3x Tie wraps
    VGA cable
    Touch USB cable
    NA Power cable
    EU Power cable
    EEI Label

    Optional Peripherals

    North America power adapter and cable kit - Elo P/N: E005277
    European & Korea power adapter and cable kit - Elo P/N: E571601
    UK power adapter and cable kit - Elo P/N: E180092
    China power adapter and cable kit - Elo P/N: E558862
    Taiwan power adapter and cable kit - Elo P/N: E818655
    Japan power adapter and cable kit - Elo P/N: E182546
    Argentina power adapter and cable kit - Elo P/N: E887099
    Australia power adapter and cable kit - Elo P/N: E637593

Configurations

(2)

Refine your search:
Compare Compare
Image of item
E607608
  • Dark Gray
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
Compare Compare
Image of item
E266835
  • Dark Gray
  • Dual serial/USB
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
No Configurations found.
