X-Series 17-inch AiO Touchscreen Computer (Rev A) (Discontinued July 2019)
This product has been replaced by - EloPOS™ Systems.
Overview

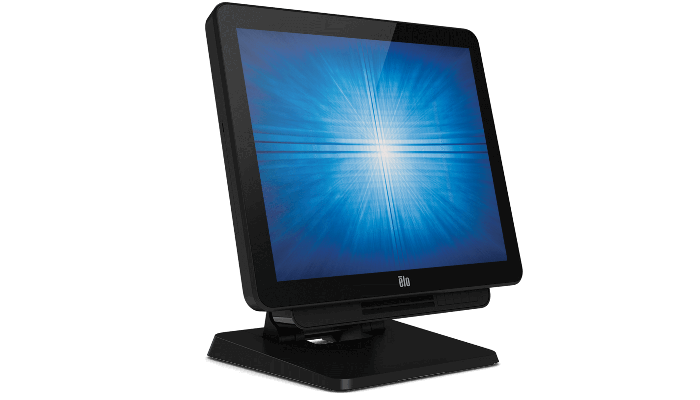

The Elo 17-inch X-Series is an innovative, all-in-one, standard-aspect touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities. With a compact design, the X-Series is ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk. The highly versatile platform provides maximum configurability and offers you unprecedented freedom of choice in the design of your AiO system.
Configurability.A wide range of processor, interface, storage, expansion, operating system and mounting options allows you to further tailor the X-Series to meet your needs. Choose from IntelliTouch® surface acoustic wave (SAW), AccuTouch® five-wire resistive or TouchPro® projected capacitive (PCAP) touch technologies to meet the demands of your environment. With processor options that scale from the value-based Intel® Celeron J1900 to the high-performance Intel® Core i5, the Elo X-Series offers one of the most powerful systems in its class. X-Series Configure-to-order Form |
 |
 |

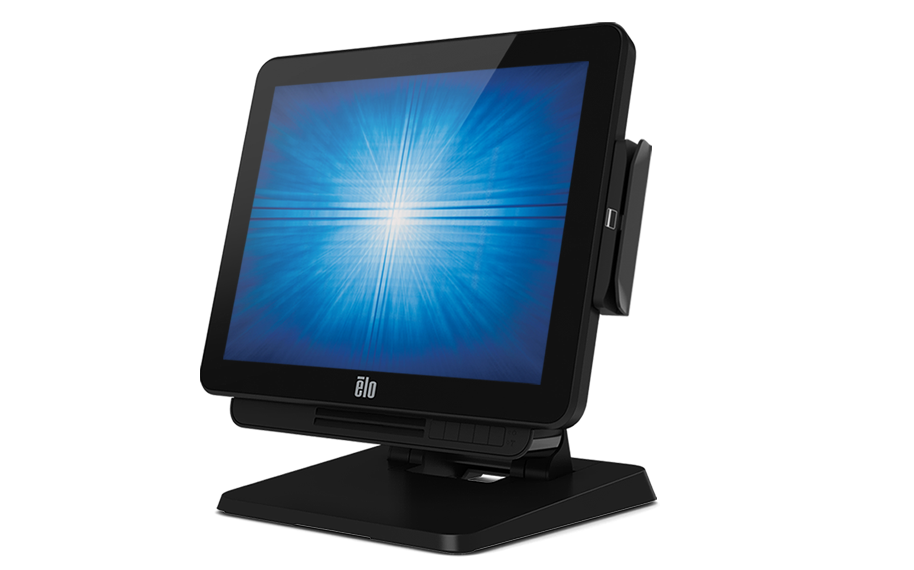

Versatility.Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector. To enhance customer engagement at checkout, choose from a wide array of customer facing displays ranging from 2-line to 20-inch. For self-service applications, transform the Elo X-Series from counter-top terminal to kiosk with the optional wall-mount kit. |
Reliability.Rigorously tested and backed by a three-year warranty, the X-Series touchscreen computer delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments. The unique, modular chassis provides easy access to storage and memory for quick, tool-less service. |
 |
Other features.
- Small footprint, retail-hardened design
- Field serviceable design allows for quick troubleshoot and fix, no tools needed
- Full range of standard connectivity ports for retail POS, POI and hospitality applications with option to add expansion module if needed
- Removable base with 100mm VESA mounting
- Kensington lock
Specifications
-
Technical
Part Number(s)
AccuTouch X2 POSReady (Worldwide) - E135387
AccuTouch X2 Win7 (Worldwide) - E131508
PCAP X2 POSReady (Worldwide) - E135689
PCAP X2 Win7 (Worldwide) - E135017
Don't see the configuration you are looking for? Please use the Configure-to-Order form found in the Resource section under Additional Support Resources to submit a request for the configuration you want.Enclosure Color
Black
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
PCAP (TouchPro® Projected Capacitive) - 10 Touch
SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single TouchProcessor
Intel® Celeron® 2.41 GHz Quad-Core J1900; 2MB L2 Cache; Fanless
Intel Core i3 2.1 GHz 4350T Dual-Core; 4MB Intel Smart Cache 3.10 GHz
Intel Core i5 2.0 GHz 4590T; 6MB Intel Smart Cache 3.00GHz
Intel Core i7 2.7 GHz 4790T; 8MB Intel Smart CacheGraphics
X2 Model: Intel HD Graphics; X3, X5 & X7 Models: Intel HD Graphics 4600
BIOS
AMI
Memory (RAM)
4GB 1600MHz DDR3L SO-DIMM on 1 of 2 slots (Expandable to 16GB maximum2 on 2 slots)
Storage
128GB 2.5” SATA SSD
NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.Chipset
X2 Model: N/A
X3 Model: Intel H81 Express
X5 & X7 Models: Intel Q87 ExpressRAID
X2 & X3 Models: N/A
X5 & X7 Models: RAID 0 / RAID 1TPM
X2 & X3 Models: N/A
X5 & X7 Models: TPM 1.2Diagonal Size
17'' diagonal, Active matrix TFT LCD (LED)
Control Buttons
Power, brightness up, brightness down, volume up, volume down
Security Lockouts: Power and Control buttons lock.Aspect Ratio
5:4
Active Area
13.30" x 10.64" / 337.92mm x 270.36mm
Resolution
1280 x 1024 @ 60Hz
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
IntelliTouch ZB: 225 nits
TouchPro PCAP: 212.5 nitsResponse Time-total (typical)
5 msec
Contrast Ratio
1000:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
USB Ports
X2 & X3 Models: 2 x USB 3.0 on I/O 4 x USB 2.0 (2 on I/O, 2 on USB Front Access)
X5 & X7 Models: 4 x USB 3.0 on I/O 2 x USB 2.0 (USB Front Access)
All Models: 3 x USB 2.0 on edges for optional Elo peripheralsPowered USB
X2 Models: N/A
X3, X5 & X7 Models: 1 x 24V, 1 x 12V (On Expansion Module)Serial Ports
1 x Serial RS-232 (standard), 1 x RJ45 (Native serial), 2 additional on Expansion Module
Ethernet Port
1 x LAN RJ45 (Gigabit), 1 additional on Expansion Module
Wireless
802.11 b/g/n
Bluetooth
BT 4.0
Cash Drawer Port
12V/24V Cash Drawer Port on Expansion Module (24V default; selectable by BIOS setting)
Additional Video Out
2nd VGA output
Audio Ports
1 x 3.5 mm Line out, 1 x 3.5 mm MIC in
Speakers
Two 2W internal speakers
OS
No OS
Windows Pro 7*
Windows POSReady 7
Windows 8.1
Windows 10Languages
Windows 7 - 35 Language groups
Windows POSReady7 - 35 Language groups
Windows 8.1 - 36 Language groupsPower Supply
External 19VDC universal-type power supply brick AC
Input voltage: 100-240 VAC
Input frequency: 50 - 60 Hz
X2 Model: Max output power: 90W (Max Draw: 100W)
X3, X5 & X7 Models: Max output power: 150W (Max Draw: 170W)Power Consumption (Typical)
X2 Model: 38W
X3 Model: 50W
X5 & X7 Models: 64WMax Touchcomputer Dimensions With Stand
15.64" x 15.40" x 2.86" / 397.29mm x 391.07mm x 251.7mm
Max Touchcomputer Dimensions Without Stand
15.63" x 13.94" x 2.67" / 397.19mm x 354.24mm x 67.73mm
Shipping Box Dimensions
20.3" x 14.4" x 19.2" / 517mm x 367mm x 487mm
Weight (with stand and Expansion Module)
17.09 lbs / 7.76 kg
Weight (with stand)
15.95 lbs / 7.24 kg
Weight (without stand)
10.26 lbs / 4.66 kg
Shipping Weight (With stand)
25.33 lbs / 11.5 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL, cUL , FCC, IC, TUV, CE, CB, CoC, RCM, VCCI, CCC, RCM, SRRC, Energy Star
Real-Time Clock
lithium-ion battery
MTBF
50,000 hours demonstrated
Mounting Options
100mm VESA mount or secure base to tabletop/desktop
Warranty
3-year
Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
North American and European power cables included
Other Features
Serviceable internal components
Threaded holes on bottom of stand for high and low display position
Removable base with 100mm VESA mounting
Kensington lock.What's in the Box
X-Series Touchcomputer, North America Power Cord, EU Power Cord, Power Adapter – 150W: X3/X5/X7 Or 90W: X2, Adapter Cable RJ-45 to DB-9, Cable cover locking screw, Quick Installation Guide (QIG)
Upgrade Options
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
500GB 7200 rpm Hard Disk Drive (HDD) - Elo P/N: E274270
1TGB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274466
64GB 2.5" SATA SSD
128GB 2.5" SATA SSD - Elo P/N: E274847
256GB 2.5" SATA SSD - Elo P/N: E061525
2GB DDR3L Memory SO-DIMM - Elo P/N: E273479
4GB 1600 MHzDDR3L Memory SO-DIMM - Elo P/N: E273670
8GB 1600 MHz DDR3L Memory SO-DIMM - Elo P/N: E273865Expansion Options

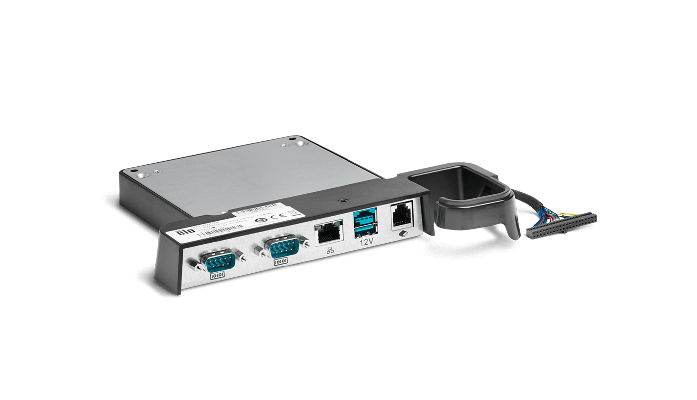

Expansion Module for additional I/O port support [2 x Serial RS-232 (Standard), 1 x Giga LAN, 1 x Powered USB (+12V), 1 x Cash Drawer (+24/+12V selectable)]
Replacement DC Power Supply
X2 model: 90W - PN: E395155
X3, X5 & X7 Models: 150W - PN: E394965
Replacement power supply is available at an additional costOptional PCAP Stylus Pen
E066148
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Reader (FPR) – Elo P/N: E001001
Barcode Reader (BCR) – Elo P/N: E267080
Customer Display (2x20 VFD) – Elo P/N: E001003
7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®)
10" LCD Customer-facing Display (10 touch) – Elo P/N E045337 (requires display mount kit E038989)
10" LCD Customer-facing Display (no touch) – Elo P/N E138394 (requires pole mount kit E038989)
Expansion Module – Elo P/N: E001006
2D Barcode Scanner – Elo P/N: E926356Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Rear Facing display Pole Mount Kit – Elo P/N: E038989
Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
Wallaby™ POS Stand (Black) - Elo P/N: E847771
Wallaby™ POS Stand (Black) - Elo P/N: E185084*Windows 7 License
Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 8.1 or Windows 10 at no additional charge. These systems include an upgrade to Windows 8.1 or Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.
