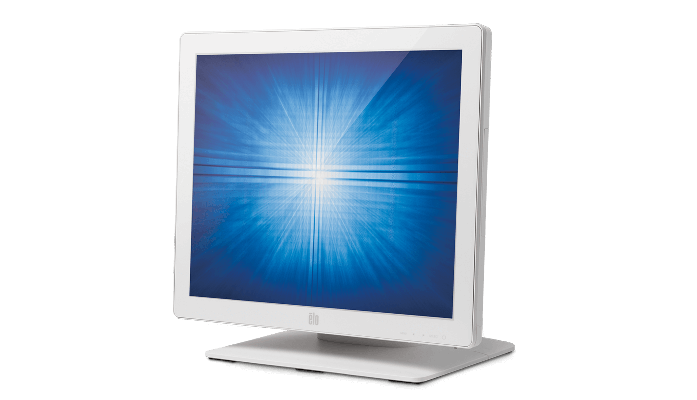

1517L 15" Touchscreen Monitor (Discontinued March 2020)
How to Buy

This product has been discontinued. Please see the replacement model - 1517L (4:3 aspect ratio).


Overview

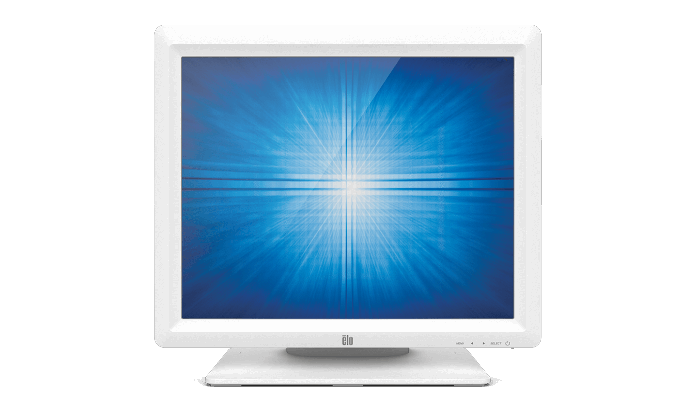

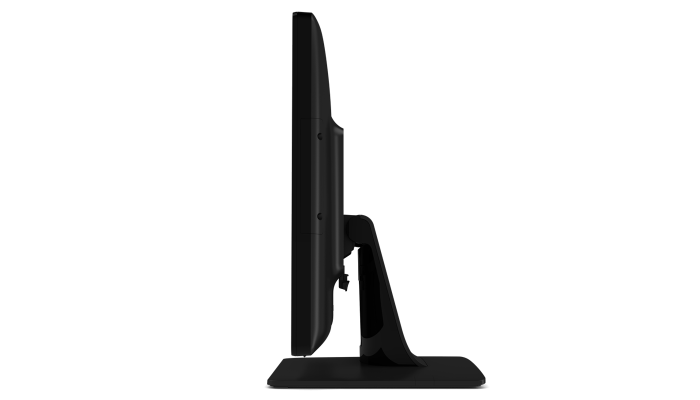

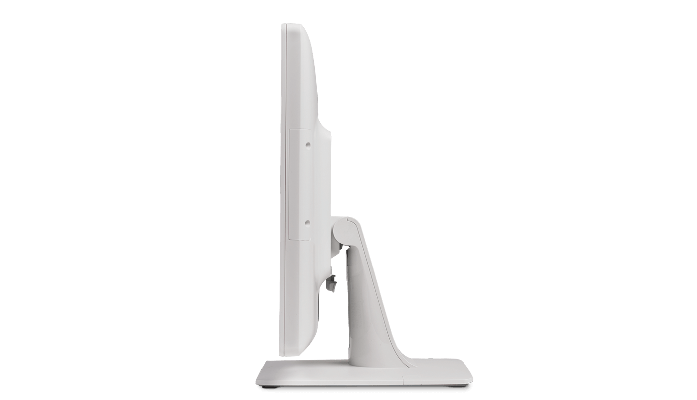

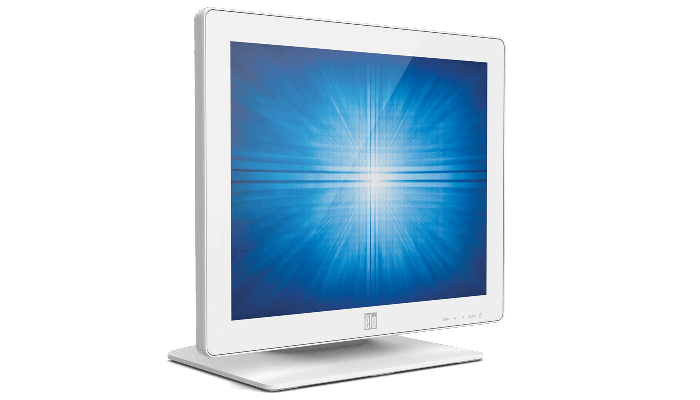

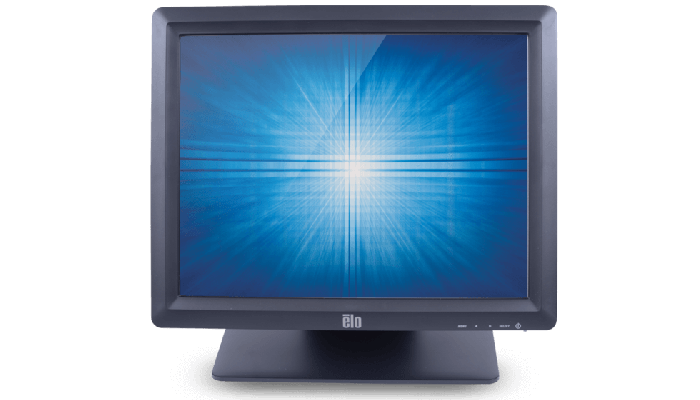

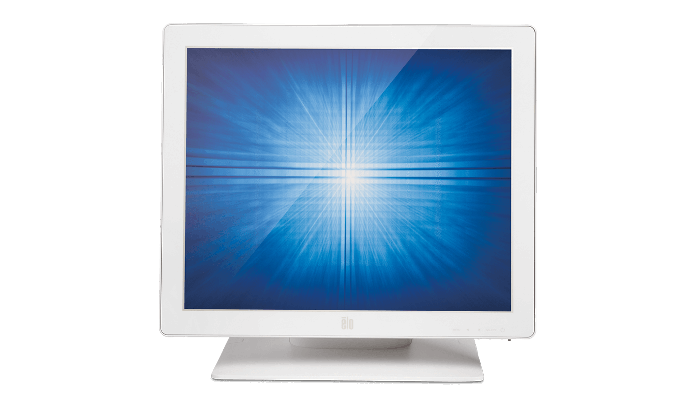

The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.

Integrated touch.

The 15-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch® five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) and IntelliTouch SAW zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications.

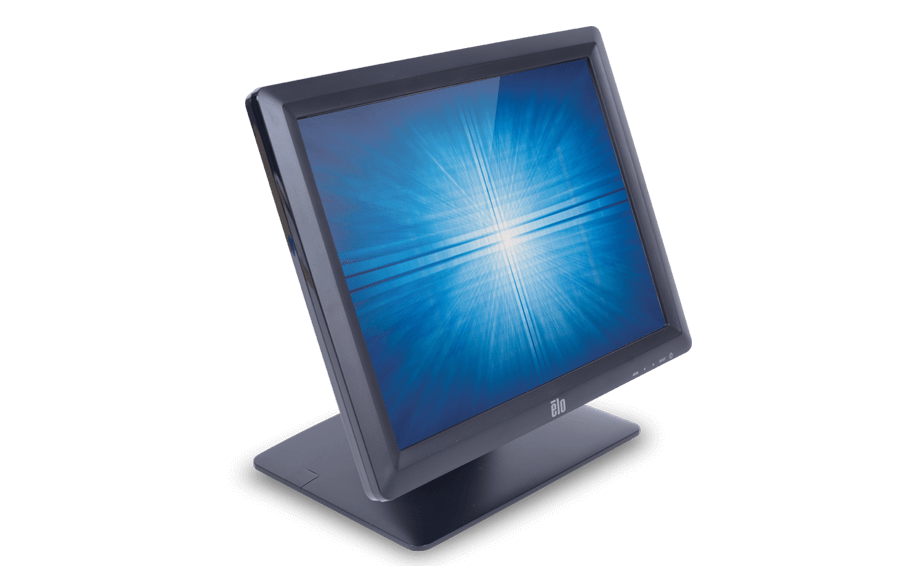

MSR ready.

The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

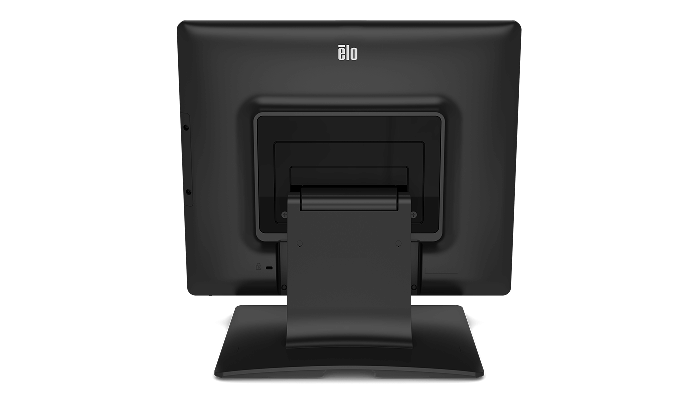

Flexible mounting.

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Other features.
  • Sleek and thin design with built-for-touch reliability
  • Flexible and space-saving
  • 60% Energy savings using LED technology
  • Sealed touchscreen against dirt, dust and liquids
  • Removable base and mounting options including VESA, wall and pole-mounting
  • USB and RS232 serial connections
  • Typical power consumption: 12W, internal and external power options
  • Three-year standard warranty

Specifications

  • Technical

    Part Number(s)

    IntelliTouch White (Worldwide) - E579160
    IntelliTouch ZB Black (China) - E110890
    AccuTouch White (Worldwide) - E532051
    AccuTouch ZB White (Worldwide) - E590483

    Enclosure Color

    White or Black

    Touch Technology & Capacity

    5-Wire Resistive (AccuTouch®) - Single-Touch
    SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
    SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch

    Diagonal Size

    15'' diagonal, Active matrix TFT LCD (LED)

    Monitor Thickness

    1.7" / 43mm

    Aspect Ratio

    4:3

    Active Area

    8.98" x 11.97" / 228.10mm x 304.13mm

    Resolution

    1024x768 @ 60Hz, 75Hz

    Other Supported Resolutions

    640 x 480 @ 60Hz, 75Hz
    720 x 400 @ 70Hz
    800 x 600 @ 56Hz, 60Hz, 75Hz
    1024 x 768 @ 60Hz, 75Hz

    Viewing Angle

    Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total

    Number of Colors

    16.2 million

    Brightness (typical)

    LCD panel: 300 nits
    AccuTouch: 240 nits
    IntelliTouch: 270 nits
    IntelliTouch ZB: 270 nits

    Response Time-total (typical)

    23 msec

    Contrast Ratio

    800:1

    Touch Interface

    Serial (RS232) and USB

    On Screen Display

    Accessible through switches along the bottom:

    Controls: Menu, Up, Down, Select

    Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults

    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese

    Lockouts: OSD, Power

    Input Video Format

    Analog VGA on Female DB-15 connector

    Input Video Frequency

    Horizontal: 31.5-60 kHz
    Vertical: 56-75 Hz

    Power Consumption (Typical)

    Monitor Only
    ON: 10.5W
    SLEEP: 3.0W
    OFF: 0.5W

    Power Supply

    Optional AC-DC power adapter sold for this monitor

    Input Voltage

    AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%

    Input Connector

    AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)

    Adapter Input Connector

    IEC 60320 C14

    Adapter Input Voltage Range

    100-240VAC, 50/60Hz

    Monitor Dimensions (with Stand)

    14.1" x 7.8" x 12.5" / 358mm x 197mm x 319mm

    Shipping Box Dimensions

    19.2" x 9.1" x 19.1" / 487mm x 231mm x 485mm

    Weight (Unpackaged)

    9.48 lbs / 4.3 kg

    Weight (Packaged)

    16.09 lbs / 7.3 kg

    Operating Temperature

    0°C to 40°C / 32°F to 104°F

    Storage Temperature

    20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 10% to 90%

    Sealability

    Touchscreen sealed to bezel
    Touchscreen sealed to LCD

    MTBF

    50,000 hours demonstrated

    Mounting Options

    75 mm VESA mount
    Capped through-mount holes

    Other Features

    Security lock receptacle

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E898247
    5 year warranty coverage - Elo P/N: E898449
    3 year warranty coverage + AUR - Elo P/N: E898648
    4 year warranty coverage + AUR - Elo P/N: E894921
    5 year warranty coverage + AUR - Elo P/N: E895125

    Regulatory approvals and declarations

    UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE

    What's in the Box

    QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand Base assembly, Filler Plate

    Replacement DC Power Supply

    The monitor may be powered with DC voltage. An optional 12V DC power brick, part number E005277, is available at additional cost.

    AC Power Cable

    NA and EU power cables included. United Kingdom AC power cables are included with the part numbers available for the EMEA region.

    China: E501749
    Japan: E045000 (3-pin to 2-pin adapter: E351985)
    UK: E540272
    Taiwan: E579153

    Optional PCAP Stylus Pen

    E066148

    Touch/Video/Audio/Accessory Cables:

    Detachable touch and video cables are included.

    Optional Peripherals

    Magnetic Stripe Reader (Black MSR) – Elo P/N: E500356

    Stands, Mounts & Kits

    1517L VESA Mount Plate (Black) - Elo P/N: E000404
    Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
    1517L Replacement Stand (White) - Elo P/N: E483197
    1517L Replacement Stand (Black) - Elo P/N: E264383

Configurations

(4)

Refine your search:
Compare Compare
Image of item
E590483 (Worldwide)
  • White
  • Serial (RS232) and USB
  • No-Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
Compare Compare
Image of item

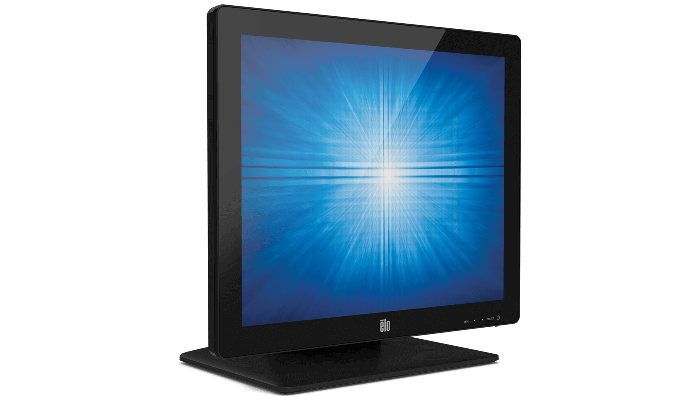

E110890 (China)
  • Black
  • Serial (RS232) and USB
  • No-Bezel
  • clear
  • IntelliTouch® ZB - SAW
Compare Compare
Image of item
E579160 (Worldwide)
  • White
  • Serial (RS232) and USB
  • Bezel
  • Anti-glare
  • IntelliTouch® - SAW
Compare Compare
Image of item
E532051 (Worldwide)
  • White
  • Serial (RS232) and USB
  • Bezel
  • Anti-glare
  • AccuTouch® - 5-Wire Resistive
