3203L 32" Interactive Display
Elo's 32" 3203L Interactive Display

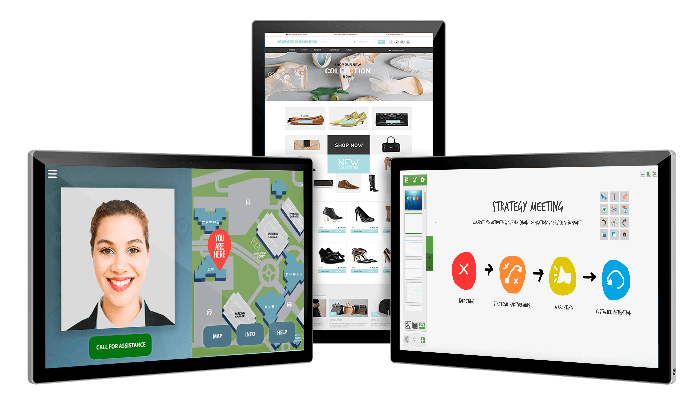

The Elo 3203L 32-inch touch screen monitor provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 3203L digital signage display offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size 32 inch tablet.
Enabling up to 40 touches with fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen, Elo’s 3203L with industry leading TouchPro® PCAP technology is designed with the user in mind. And with touch thru capability, the interactive display can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Create Immersive Interactive Experiences
with the 32" Digital Signage Display
Endless Aisle Product
Information Signage
Video Conferencing
Interactive Whiteboard
Virtual Receptionist
Capacity Management
Patient Room Display
Virtual Health
Interactive Menu Board
Self-Order
Self-Checkout
Collaboration
Dashboarding
Inventory Management
Boot Barn Testimonial
Boot Barn chose Elo’s 32-inch interactive digital signage display,
the Elo Backpack® and EloView® software to power their Range Finder kiosk.
Collaboration
for All Environments

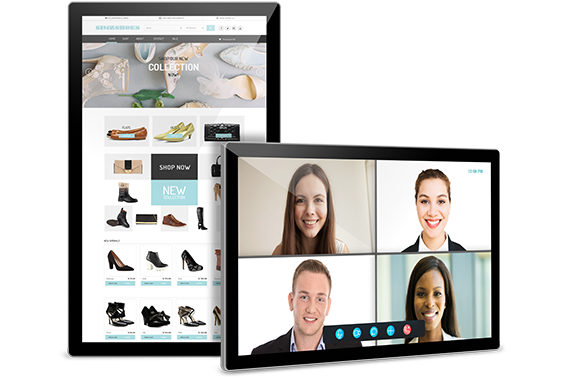

Purpose-built to make collaboration easy – simply add your software of choice with the 32" Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.
Staff Training & Development
Whiteboarding & Annotation
Interactive Video Conferencing
Virtual Health
Unified Style Across Sizes
From 32- to 65-inches, choose the digital signage display size that fits each space perfectly.
Modular & Ready to Configure.
The 3203L digital signage display offers a flexible design that can be easily configured to fit any use with Elo Edge Connect™ compatibility. Choose from a variety of accessories including payment devices, cameras, barcode readers and many others - configuration is up to you and can be easily changed at any time.
Flexibility for Your Install

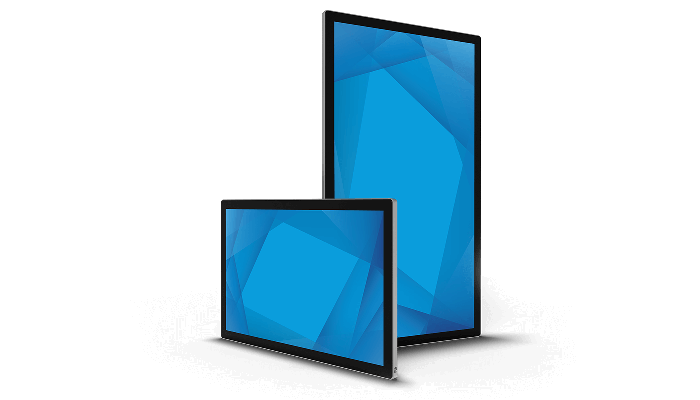

Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a protective layer. Whether you want to flush mount the 32-inch touch screen monitor or fully encase it behind glass, our robust PCAP products are purpose-built for durability.
Add Windows Computing
Power with Ease

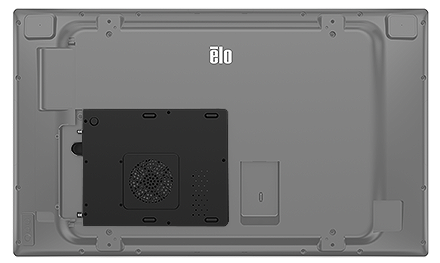

The commercial-grade computer module transforms Elo's 32" touch screen monitor into a powerful, all-in-one, touch computer platform. Running Intel® Core™ 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.
Android – Scalability
Simplified

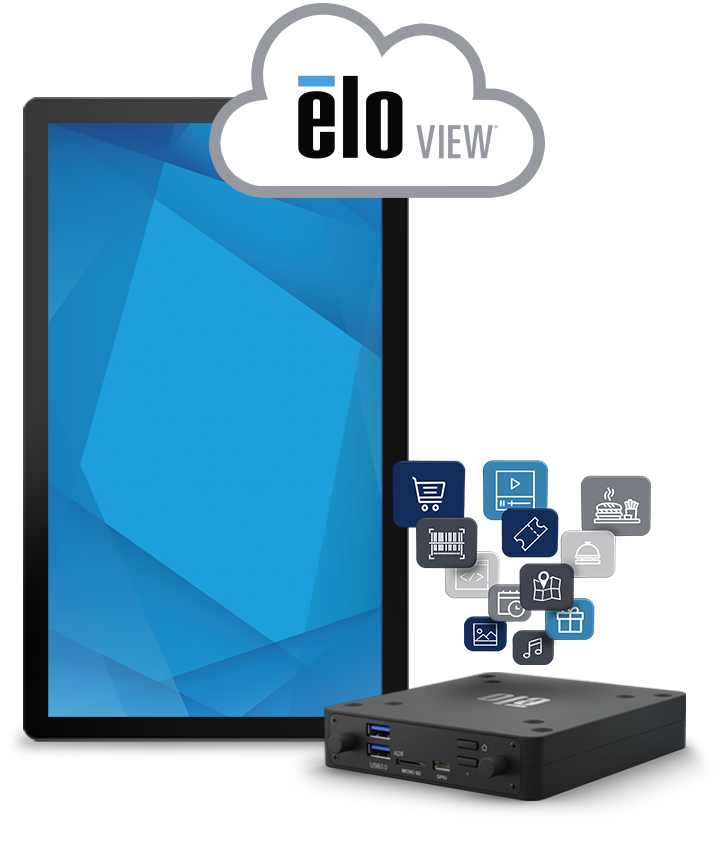

With the Elo Backpack®, an Android-powered compute engine, you can transform the Elo 32" touch screen into a scalable and powerful media platform. Powered by EloView®, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design. * Supports a maximum resolution of 1920x1080
Elo EssentialEdge™ for Android
Are you looking for ways to make your digital transformation faster, easier and more affordable? Elo EssentialEdge for Android offers everything you need to build and operate interactive solutions for your business. With easy-to-use development kits, robust management tools, world class life cycle management and security, Elo can help you deliver the convenience and familiarity of Android interfaces in a secure, business-friendly way.
Elo Advance Unit Replacement - We Have Your Back.
As part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can't be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed
for Commercial-Grade Environments
Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
Purpose built for touch
Compliant with UL-60950 & IK-07 impact testing
Ready for use 24/7 in high traffic environments
Advance Unit Replacement included with standard warranty
External control for remote management
Free Technical Support with standard warranty
Specifications
-
Technical
Part Number(s)
TouchPro PCAP (clear with anti-friction) - E720061
Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 40 Touch with Palm Rejection and Touch Thru capability
Touch Thru
Supports up to 6mm glass/3mm plastic with up to 2 touches. Supports gloves up to 1.4mm
Touch Interfaces
USB-C
Diagonal Size
31.5'' diagonal, Active matrix TFT LCD (LED)
Active Area
27.5" x 15.47" / 698.4mm x 392.9mm
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60hz
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 56/60Hz
1024 x 768 @ 60Hz
1280 x 720 @ 60Hz
1280 x 960 @ 60Hz
1280 x 1024 @ 60Hz
1920 x 1080 @ 50/60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
8-bit (16.7 million)
Brightness (typical)
LCD Panel: 500 nits
PCAP: 430 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
3000:1
On Screen Display
Let’s Get Started: Language Selection, Time Setting, Time Zone
Video Source Select: HDMI-1, HDMI-2, DisplayPort, USB-C, Internal-PC DP, Internal-PC HDMI
Video Settings: Video Port Discovery, Brightness, Contrast, Black Level, Sharpness and Aspect Ratio can be selected
Color Settings: Color Temperature, Color Sensor, User Preset (for color), Picture Modes and HDMI Full Range are available in this menu.
Audio Settings: Audio Input, Audio Output, Mute, Volume selection are available here.
Power: Power Loss Behavior, Power Lock, Energy Saving Mode, Power Status Light options are available here
Time: Time Set, On/Off Schedule
OSD Settings: Recall Defaults, OSD Timer, OSD Language, OSD Lock and OSD Portrait Rotation, Touch Switch, Tabletop
Information: Monitor, Temperature, Help and Support are available here
See user manual for full details.I/O Ports
HDMI 1.4 x2
USB-C (for touch and video)
RJ45 (for optional OSD remote)
DisplayPort 1.2
3.5mm TRS jack (for RS232)
3.5mm Audio Headphones out
Elo Edge Connect Micro USB 2.0 x4Control Buttons
Power
Video Source Selection
On Screen DisplayVideo_1
2x HDCP-capable HDMI on Type A connector
DisplayPort 1.2 connector
USB-C connector
Input Video Horizontal Sync frequency range: FHD: 30 – 69 KHz
Input Video Vertical Sync (frame rate) frequency range: 24 - 64 HzHeadphone Output Connector
3.5 mm TRS jack
Speakers
2 x 5 W stereo speakers
Power
Input connector (power): IEC 60320-C13
Input signal specifications (power): 100-240VAC 50/60HzMaximum Operating Time
24 hours/day
Power Consumption (Typical)
Monitor + AC/DC adapter:
ON: 44 W
SLEEP: 1.43 W
OFF: 0.29 W
Monitor with ECMG4 + AC/DC adapter:
ON: 81 W
SLEEP: 3.5 WDimensions
30.11" x 18.07" x 2.25" / 764.7 mm x 459.1 mm x 57.2 mm
Shipping Box Dimensions
35.04" x 25.2" x 6.3" / 890 mm x 640 mm x 160 mm
Weight (Unpackaged)
With ECMG4: 30.8 lbs / 13.97 Kg
Without ECMG4: 26.17 lbs / 11.87 KgWeight (Packaged)
Without ECMG4: 33.75 lbs / 15.31 Kg
Operating Temperature
Portrait/Landscape/Tilt (≤15°) Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode: 0° C to 35° C / 32°F to 95°FStorage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95% (38.7°C max wet bulb temperature)Mounting Options
VESA 400 x 400mm
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year with AUR included
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330
3 year warranty coverage + OSE - Elo P/N: E740527
4 year warranty coverage + OSE - Elo P/N: E740728
5 year warranty coverage + OSE - Elo P/N: E740918Regulatory approvals and declarations
UL 62368-1
FCC (US)
cUL, IC (Canada)
CB (International safety) (IEC/EN60950-1+IEC/EN62368-1)
CE (Europe)
VCCI (Japan)
RCM (Australia)
CCC, China RoHS (China) (for TouchPro version only)
EAC (Russia)
NOM (Mexico)
IK07 and UL60950 for ball drop testEnergy Star
8.0
Other Features
Ambient Light Sensor - changes panel color to match ambient light, Auto Wake
What's in the Box
Quick Install Guide
HDMI 2.0 cable (Type A plug to Type A plug)
USB cable (Type A plug to Type C plug)
Power cable, IEC 60320-C13 to NA plug
Power cable, IEC 60320-C13 to EU/KR plug
Power cable, IEC 60320-C13 to UK plug
Serial 3.5mm male to Serial DB9 female cable
Energy label according to EU Regulation 1062/2010IDS Optional Accessories
3D Camera - Elo P/N: E134699
Webcam - Elo P/N: E201494
2D Barcode Scanner (SE4720) – Elo P/N: E384627
2D Barcode Scanner (SE4107) – Elo P/N: E245047
Magnetic Stripe Reader – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Fingerprint Scanner – Elo P/N: E134286
Stand for IDS - Elo P/N: E722153
Wired OSD Remote - Elo P/N: E483757
Wall Mount Kit - Elo P/N: E721949
Passive Stylus - Elo P/N: E727568
Replacement Cable Kit - Elo P/N: E141067
Webcam - Elo P/N: E277819
i5-7500 ECMG4 with No OS - Elo P/N: E227895
i5-7500 ECMG4 with Win10 (LTSC) - Elo P/N: E228087
Huddle Kit - Elo P/N: E380925
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
RFID - Elo P/N: E673037
4K Conference Camera - Elo P/N: E988153
Elo Edge Connect™ Speaker Bar (Black) - Elo P/N: E894719
Elo Edge Connect™ Speaker Bar (White) - Elo P/N: E133780
