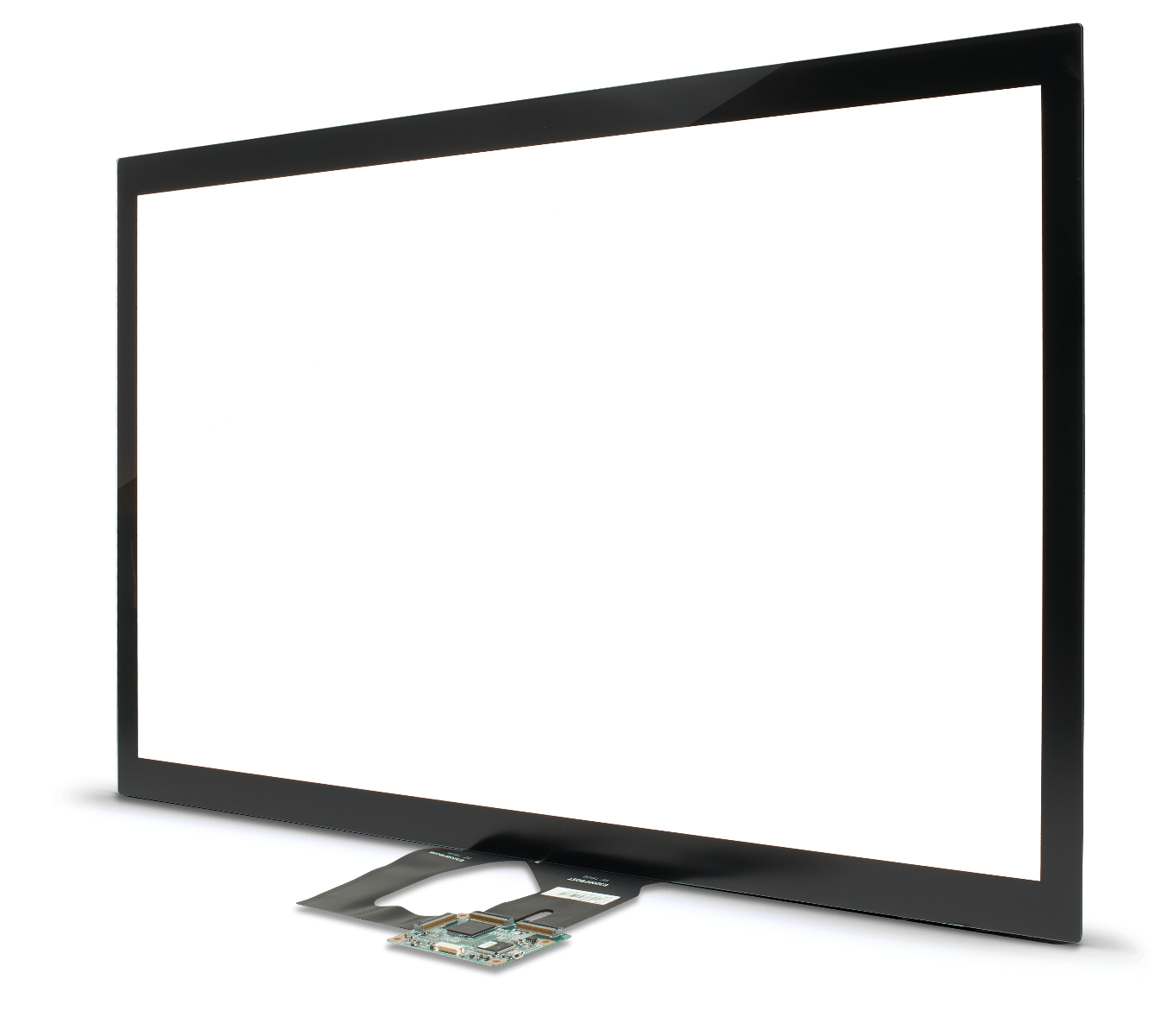

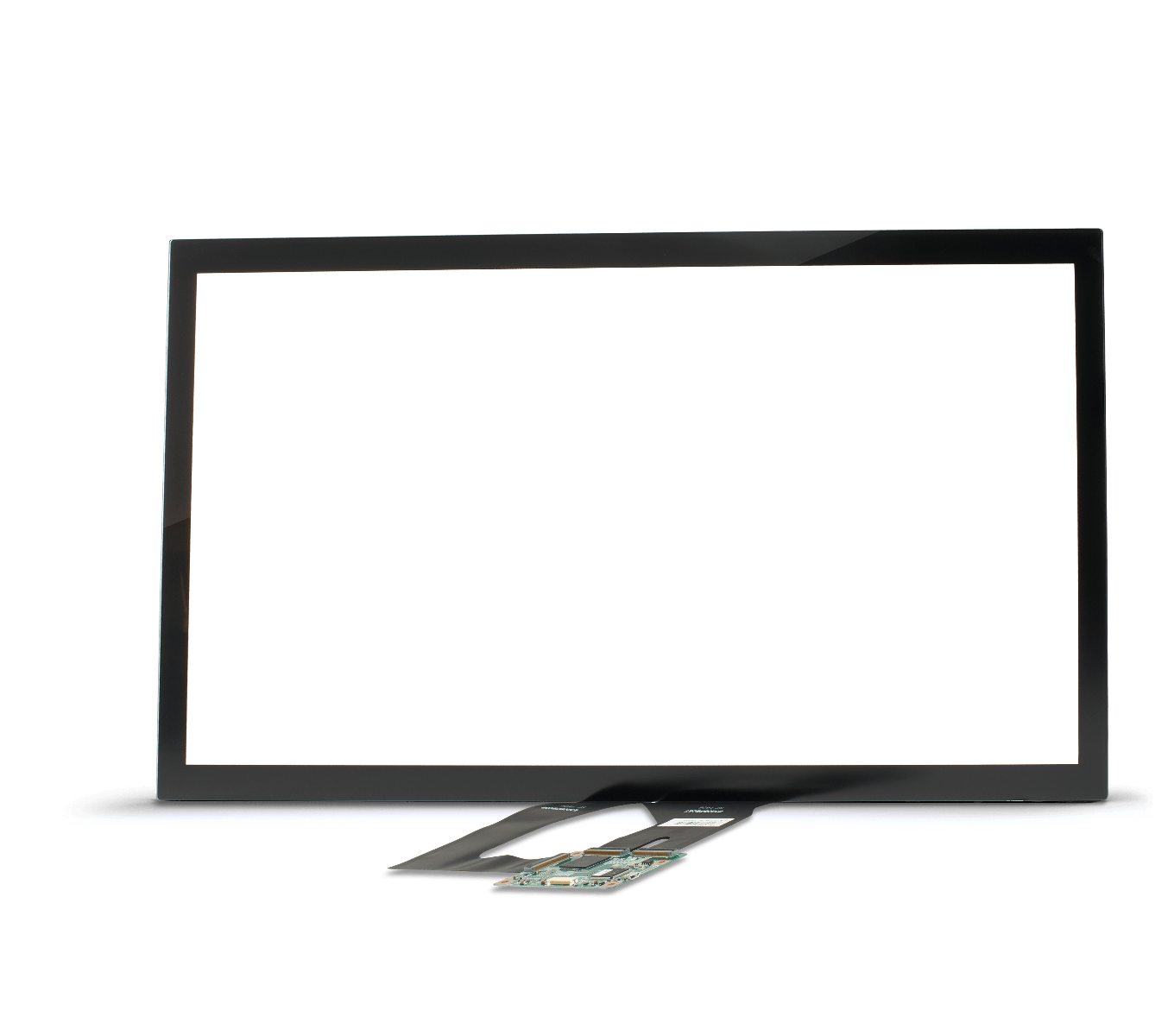

TouchPro® Pro-M Projected Capacitive, 42"-86"
Overview
The Elo TouchPro® Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined with a stylish, sleek design. TouchPro projected capacitive touchscreens are designed for the rigors of commercial applications. The advanced solution of the Pro-M offers a lighter +10-point multi-touch screen specifically designed for large format, high-use applications.
Download our whitepaper — Large Format PCAP Reinvented and see how the trend in large format touch screens is driving the need for new types of PCAP products.
 |
Large Format PCAPElo’s Pro-M solution offers a lighter +10-point multi-touch screen specifically designed for large format, high-use applications. TouchPro Pro-M PCAP touchscreens are available in 42”, 43”, 46”and 55” standard diagonal sizes. |
Fully CustomizableElo also offers a wide range of customization options to meet your requirements including screen dimensions, cover glass thickness, bonding and treatments such as anti-glare. |
 |
 |
Complete SolutionsElo offers a complete PCAP solution including touch screen, controllers, drivers for various operating systems and software utilities resulting in shorter development and integration time. |
Factory Video
Elo’s state of the art facility in Suzhou, China occupies a quarter of a million square feet and includes 155,000 square feet of manufacturing space with adjacent offices and warehouses. It is home to Elo’s industry leading touchscreen solutions including AccuTouch 5-wire resistive, IntelliTouch surface acoustic wave and TouchPro projected capacitive touchscreens.
Elo is proud to be the only company in the world that produces its own touch screens, ASICs, firmware and software drivers in-house.
Applications
- Interactive digital signage
- Gaming and lottery terminals
- Point-of-Information kiosks
- Self-service/self-automation
- Education
TouchPro Product Selection Table
Screen Families
7"- 32"
7"- 22"
≥ 42"
7"- 32
7"- 22"
≥42"
Controller Families
| Screen Size Range |
Form Factor* |
Flextail Configuration |
Interface | Touch Screen Family |
Controller IC Make/ Model |
Fluid Rejection |
Saline/ Salt Water Operation |
10V RMS CS |
Touch Through Glass |
Glove | Stylus | # of touches |
|
| 7200 series CoF |
≤15.6" | CoF | Single | USB | Pro-F | Multiple | Good | - | Yes | Good | Good | Passive | Multi |
| 8200 series Core |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Multiple | Good | Good | Yes | Good | Good | Passive | Multi |
| 9200 series Advanced |
7"- 22" | PCB | Single/Multi | USB/Serial | Pro-F/Pro-G | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
| 8300 series Large |
≥32" | PCB | Single/Multi | USB | Pro-M/Pro-F | Multiple | Good | - | Yes | Good | Good | Active | Multi |
| 9300 series Advanced |
22"- 32" | PCB | Single/Multi | USB/Serial | Pro-F | Elo | Best | Best | Yes | Best | Best | Passive | Multi |
Specifications
-
Technical
Technology
touchpro
Number of Touches
Multi Touch (50)
Input Methods
Finger
Passive stylusDimensions
sizes from 42" to 86"
Light Transmittance
≥85% ± 3%
Overall Thickness
3.4mm
Cover Glass Thickness
2.8mm chemically strengthened; other thicknesses and tempered glass available
Surface Treatment
Anti-Glare
Anti-Fingerprint
Anti-Bacterial
Privacy Filters
Colored Borders
Printed IconsDurability
Over 50 million touches in one location
Positional Accuracy
± 2.0mm
Interface
USB, I2C, Serial
Report Rate
>100 Hz
OS
Windows XP
Windows 7
Windows 8
Linux
AndroidUtilities
Multiple monitor
Various touch modes
Touch zonesOperating Temperature
0°C to 60°C
Humidity
95% (Non Condensing)
Safety Approvals
UL
Warranty
2-year limited warranty
Note
Actual technical specifications are dependent on multiple design variables including touch IC and screen size. Values above are for reference only.
