3202L 32" Interactive Digital Signage (IR Model - Replaced by 3203L)
This product has been replaced by the 3203L.
This product has been replaced by the 3203L.

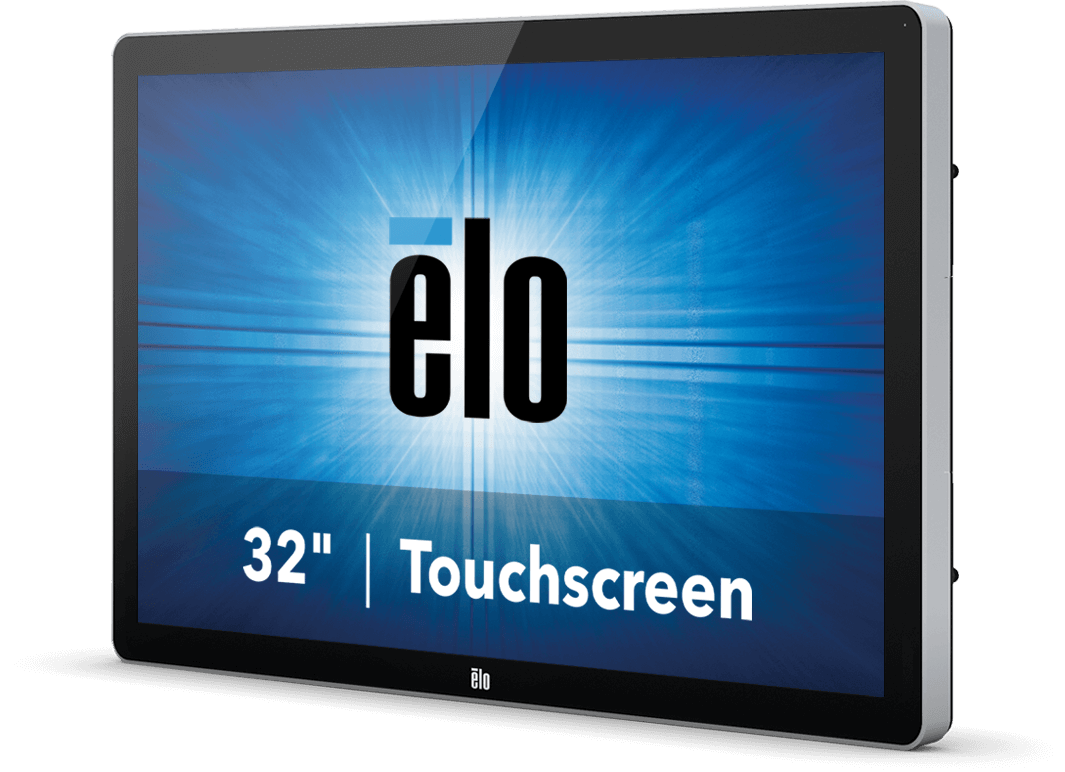

Elo 3202L Touchscreen Signage Display
Add interactivity to any environment with Elo’s 3202L 32-inch touchscreen display. With a brilliant and responsive interactive canvas for leveraging a variety of content, the professional-grade large format display is well-suited for creating engaging experiences. From endless aisle and brand experiences to way-finding and collaboration, Elo’s touchscreen displays from 10 to 70 inches offer everything you need in a sleek, slim design and are built to withstand the rigors of continuous public use.

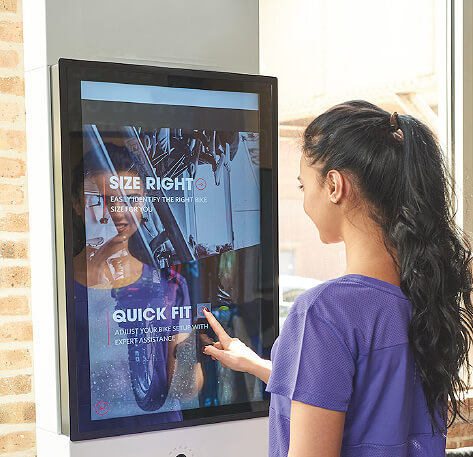

Bring Interactive Experiences into Public Places

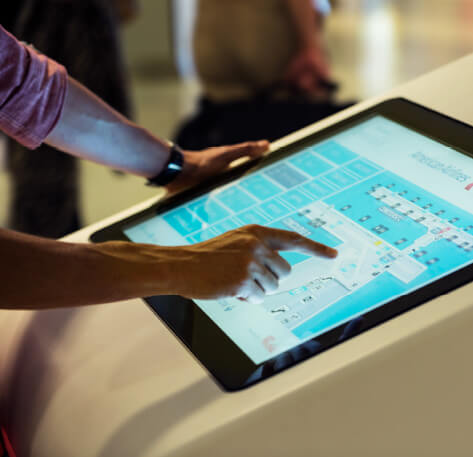

Wayfinding

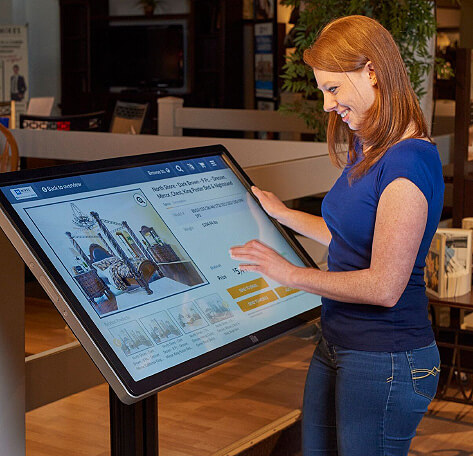

Product Configurator

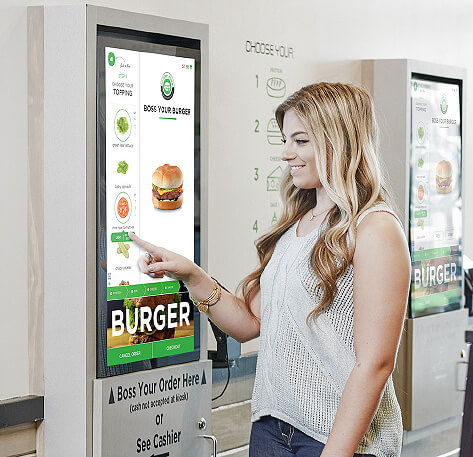

Self-Service
Endless Aisle
Collaboration for all Environments
Not only do high traffic environments demand interaction, but meeting rooms and classrooms do as well.
They introduce heightened collaboration capabilities between the instructor and their audience, helping to drive concepts and
innovation beyond what a whiteboard and dry erase marker once did.

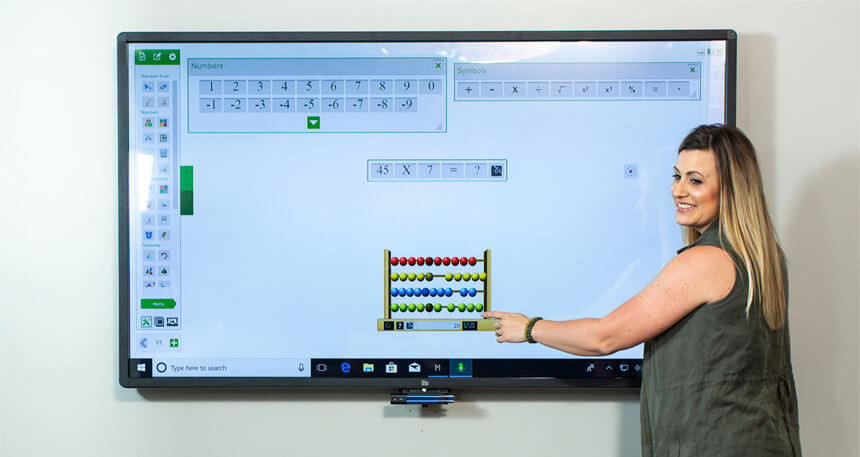

Collaborative
Learning
White Boarding &
Markup

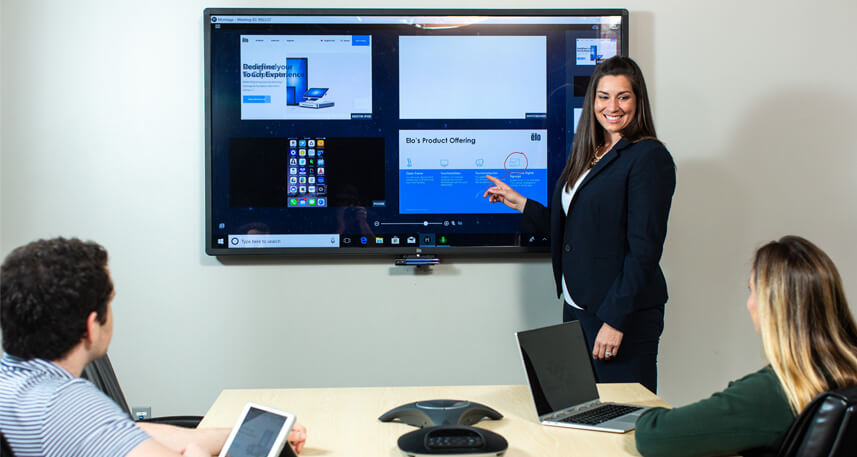

Collaborative
Conferencing
Presentations
Meeting
Management
Unified Style Across Sizes
The 3202L is available with two touch technology options. Both enable 10+ touch for multi-user interaction with fast and sensitive responses.
TouchPro® PCAP offers clear anti-friction edge-to-edge glass with touch thru performance. Infrared (IR) offers ease of scalability to larger sizes with an extra
level of protection against scratches.
Accessorize with Elo Edge Connect™
Expand your touchscreens potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of our many other accessories. With the Elo Edge Connect system, accessories attach flush to the edge of the touchscreen/display for a clean design and extended functionality. On the 3202L touchscreen monitor, you can easily add any combination of up to four Edge Connect products – configuration is up to you and easily changed at any time.
Transform your Touchscreen Display into a Touchscreen Computer
With high-powered CPU options for Android or Windows OS, Elo enables a seamless end-to-end solution from one manufacturer for interactive experiences.
Purpose-built for compatibility and long life-cycles, the compute modules and touchscreen systems create one of the most robust and reliable
solutions on any platform.

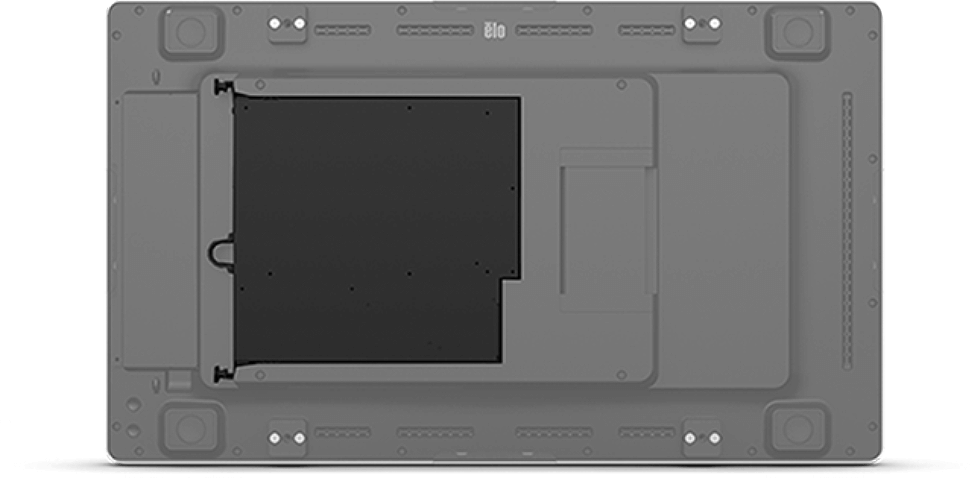

Add Windows Computing Power with Ease
The Elo Computer Modules (ECMs) for Windows slide into the back of the touchscreen display to deliver one of the industry's thinnest commercial grade all-in-one large format touchcomputers. AC power, video and USB signals pass between the computer module and the display making field installation and maintenance easy with no external cables required.

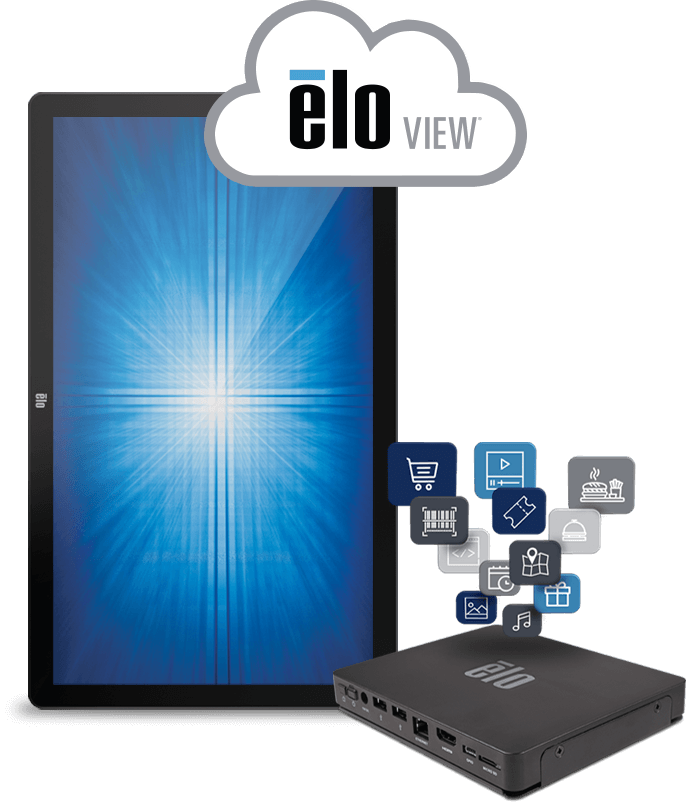

Start Managing Your Devices Smarter with the Elo Backpack® & EloView®
The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView® portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
EloCare Advance Unit Replacement - We Have Your Back.
As part of the three-year standard warranty for large format IDS, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service. If the issue can't be resolved over the phone, Elo will provide a replacement unit and a pre-paid shipping label for the defective unit to be returned at no cost. Elo also offers rapid response times and On-Site Exchange for large format interactive displays at additional cost.
Commercial-Grade Products Designed for Commercial-Grade Environments
Compliant with ADA and IBC requirements for protrusion when mounted to a wall with an Elo low-profile mount.
Ready for use 24/7
Advance Unit Replacement included with standard warranty. Learn More
Backed by our 3-year standard warranty with an optional extension to 4 or 5-years.
Purpose built for touch at the factory level
External control for remote management (RS232 via virtual comm-port)
Specifications
-
Technical
Part Number(s)
Infrared (clear) - E222368
Enclosure Color
Black
Touch Technology & Capacity
Infrared - 20 Touch
Touch Interfaces
USB
Diagonal Size
31.5'' diagonal, Active matrix TFT LCD (LED)
Active Area
27.49" x 15.47" / 698.4mm x 392.9mm
Aspect Ratio
16:9
Resolution
1920 x 1080 @ 60hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD Panel: 500 nits
IR: 450 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
3000:1
I/O Ports
Input: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line in
Output: Audio Headphones out, RJ45 (for optional OSD remote)Input Video Frequency
Horizontal: 31.5 - 73 KHz
Vertical: 47 - 63 HzAudio Input Connector
3.5 mm TRS jack
Audio Input Signal Range
1Vrms max stereo signal (standard PC line out)
Headphone Output Connector
3.5 mm TRS jack
Speakers
4 x 5 W stereo speakers
Power Supply
AC internal - Replacement power cables are available with the purchase of a replacement cable kit - Elo P/N: E060080
Input Connector
IEC 60320 C6
Input Voltage
100 - 240 VAC 50/60Hz
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
Monitor Only
(Typical at 120V at 60Hz): ON: 55.0 W; SLEEP: 9.0 W; OFF: 2.0 W
(Typical at 230V at 50Hz): ON: 53.0 W; SLEEP: 9.0 W; OFF: 2.5 W
Monitor with ECMG3
(Typical at 120V at 60Hz): ON: 62.0 W; SLEEP: 12.0 W; OFF: 11.0 W
(Typical at 230V at 50Hz): ON: 63.0 W; SLEEP: 11.0 W; OFF: 12.0 WDimensions
I30.03" x 18.00" x 2.43" / 762.8mm x 457.3mm x 61.6mm
Shipping Box Dimensions
34.84" x 7.87" x 22.83" / 885mm x 200mm x 580mm
Weight (Unpackaged)
With ECMG3: 35.83 lbs / 16.25 Kg
Without ECMG3: 29.21 lbs / 13.25 KgWeight (Packaged)
Without ECMG3: 39.88 lbs / 18.09 Kg
Operating Temperature
Portrait/Landscape Mode: 0°C to 40°C / 32°F to 104°F
Table top Mode and with Intel OPS modules: 0° C to 35° C OR 32°F to 95°FStorage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Mounting Options
VESA mount per MIS-F, 400, 400, 6MM
Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage + AUR - Elo P/N: E740135
5 year warranty coverage + AUR - Elo P/N: E740330
3 year warranty coverage + OSE - Elo P/N: E740527
4 year warranty coverage + OSE - Elo P/N: E740728
5 year warranty coverage + OSE - Elo P/N: E740918Regulatory approvals and declarations
UL, FCC (US) - Class A
cUL, IC (Canada) CB (International safety)
CE (Europe) - Class A
CCC (China)
EAC (Russia)
VCCI (Japan)RFID Supported Protocols
ISO - 14443-A
ISO - 14443-B
ISO – 15693What's in the Box
HDMI cable (Type A plug to Type A plug), USB cable (Type A plug to Type B plug), power cable, IEC 60320-C5 to NA plug power cable, IEC 60320-C5 to EU/KR plug power cable, IEC 60320-C5 to UK plug, 3.5mm Audio Cable, Energy label according to EU Regulation
Optional PCAP Stylus Pen
E066148
IDS Optional Accessories
Barcode Reader – Elo P/N: E093433
2D Barcode Scanner – Elo P/N: E926356
Elo Backpack® - Elo P/N: E611864
Elo Backpack® 3.0 - Elo P/N: E901355
Magnetic Stripe Reader – Elo P/N: E001002
NFC/RFID Reader – Elo P/N: E001004
Wallmount for IDS 02 Series – Elo P/N: E275050
EMV Cradle for Ingenico ICMP - Elo P/N: E200788
EMV Cradle for Verifone E355 - Elo P/N: E201363
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Fingerprint Scanner – Elo P/N: E134286
ECM Power Connector Module for IDS 02 Series – Elo P/N: E275433
Stand for IDS 02 Series - Elo P/N: E275623
Wired OSD Remote - Elo P/N: E483757
OPS adaptor kit for IDS 02 Series - Elo P/N: E337104
i3-6100 ECMG3 with No OS - Elo P/N: E400587
i3-6100 ECMG3 with Windows 10 - Elo P/N: E400965
i5-6500 ECMG3 with No OS - Elo P/N: E401168
i5-6500 ECMG3 with Windows 10 - Elo P/N: E401558
i5-6500 ECMG3 with Windows 10 (256 GB SSD & 8GB RAM) - Elo P/N: E458919
i5-6500 ECMG3 with Windows 10 and DisplayNote Montage Software - Elo P/N: E343989
i7-6700 ECMG3 with No OS - Elo P/N: E401764
i7-6700 ECMG3 with Windows 10 - Elo P/N: E402161
i7-6700 ECMG3 with Windows 10 (256 GB SSD) - Elo P/N: E459109
Note: All ECMG3 Kits include the E275433 ECM Power Connector Module for IDS02
Replacement Cable Kit - Elo P/N: E060080
Collaboration Tray - Elo P/N: E477238
