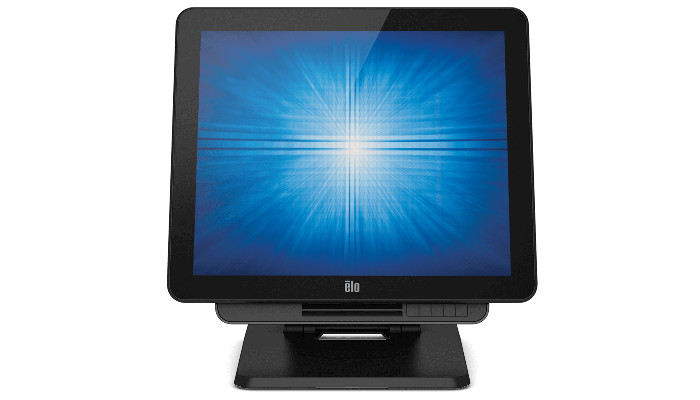

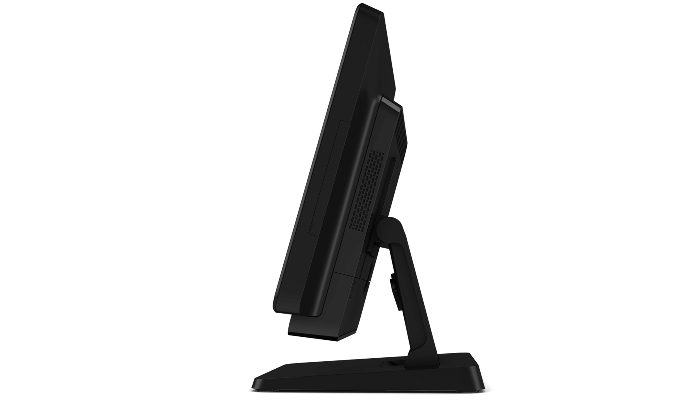

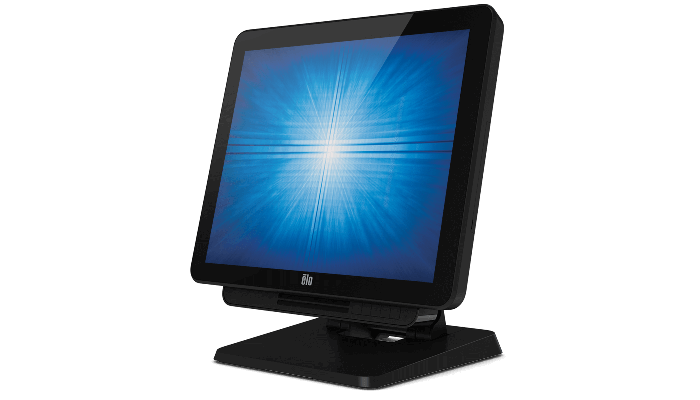

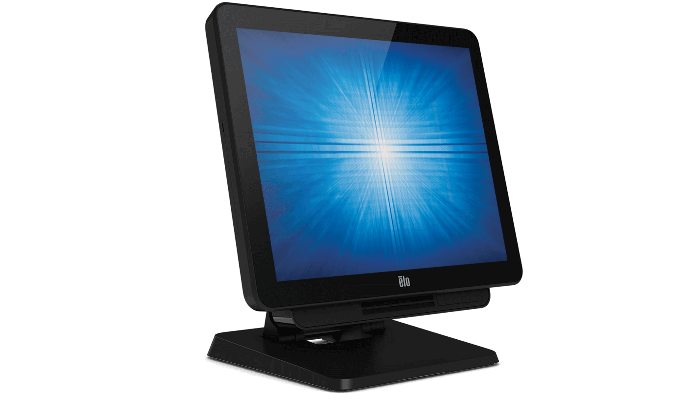

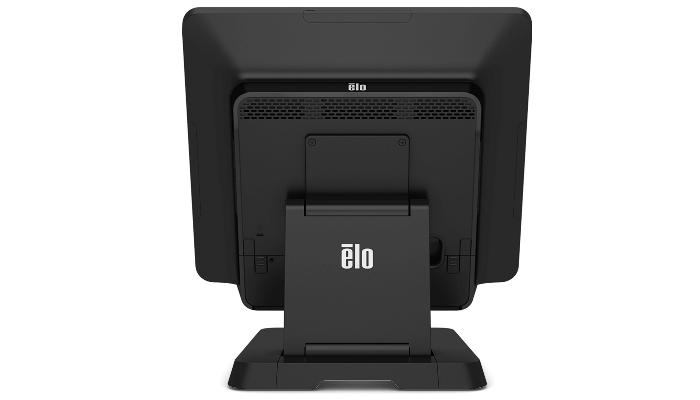

X-Series 17-inch AiO Touchscreen Computer (Rev B) (Discontinued March 2020)

Specifications

• Technical

  ---

  Part Number(s)

  AccuTouch X2 No OS (Worldwide) - E482235
  AccuTouch X2 Win 10 (Worldwide) - E518989
  AccuTouch X3 No OS (Worldwide) - E520754
  AccuTouch X3 Win 7 (Worldwide) - E521330
  AccuTouch X3 Win 10 (Worldwide) - E520956
  TouchPro PCAP X5 Win 7 (Worldwide) - E548822

  Don't see the configuration you are looking for? Please use the Configure-to-Order form found in the Resource section under Additional Support Resources to submit a request for the configuration you want.

  Enclosure Color

  Black

  Touch Technology & Capacity

  5-Wire Resistive (AccuTouch®) - Single-Touch
  PCAP (TouchPro® Projected Capacitive) - 10 Touch

  Surface Treatment

  Anti-glare

  Processor

  Intel Celeron Processor N3450
  2M Cache, up to 2.2 GHz

  Intel Core i3-6100TE Processor
  4M Cache, 2.70 GHz
  4 MB Intel Smart Cache
  8 GT/s Direct Media Interface 3 (DMI3)

  Intel Core i5-6500TE Processor (with Intel vPro)
  6M Cache, up to 3.30 GHz by Intel Turbo Boost Technology 2.0
  6MB Intel Smart Cache
  8 GT/s Direct Media Interface 3 (DMI3)

  Intel Core i7-6700TE Processor (with Intel vPro)
  8M Cache, up to 3.40 GHz by Intel Turbo Boost Technology 2.0)
  8MB Intel Smart Cache
  8 GT/s Direct Media Interface 3 (DMI3)

  Graphics

  X2 Model: Intel HD Graphics 500
  X3, X5 & X7 Models: Intel HD Graphics 530

  BIOS

  AMI

  Memory (RAM)

  X2 Models:
  4GB 1600MHz DDR3L SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum¹ on 2 slots)³

  X3, X5 & X7 Models:
  4GB 2133MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 16GB maximum² on 2 slots)<sup>3

  1</sup>Maximum memory using 2 slots. Expandable up to 8GB maximum, SO-DIMM DDR3L-1600 (PC3-12800).
  ²Maximum memory using 2 slots. Expandable up to 16GB maximum, SO-DIMM DDR4-2400 (PC4-19200).
  ³Check brand of the memory included in your unit before purchasing the memory kit.

  Storage

  128GB 2.5” SATA SSD 72 TBW

  NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

  Chipset

  X2 Model: N/A
  X3 Model: Intel H110 Express
  X5 & X7 Models: Intel Q170 Express

  RAID

  X2 & X3 Models: N/A
  X5 & X7 Models: RAID 0 / RAID 1

  TPM

  X2 & X3 Models: N/A
  X5 & X7 Models: TPM 2.0

  Active Management Technology (AMT)

  X2 & X3 Model: N/A
  X5 & X7 Models: Intel AMT 10.0/11.0 Support

  Diagonal Size

  17'' diagonal, Active matrix TFT LCD (LED)

  Control Buttons

  Power, brightness up, brightness down, volume up, volume down
  Security Lockouts: Power and Control buttons lock.

  Aspect Ratio

  5:4

  Active Area

  13.30" x 10.64" / 337.92 mm x 270.36 mm

  Resolution

  1280 x 1024 @ 60Hz

  Number of Colors

  16.7 million

  Brightness (typical)

  LCD panel: 250 nits
  AccuTouch: 200 nits
  TouchPro PCAP: 212.5 nits

  Response Time-total (typical)

  5 msec

  Contrast Ratio

  1000:1

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

  USB Ports

  X2 & X3 Models:
  2 x USB 3.0 on I/O
  4 x USB 2.0 (2 on I/O, 2 on USB Front Access)
  3 x USB 2.0 on edges for optional Elo peripherals.

  X5 & X7 Models:
  4 x USB 3.0 on I/O
  2 x USB 2.0 (USB Front Access)
  3 x USB 2.0 on edges for optional Elo peripherals

  Powered USB

  1 x 24V on I/O

  Serial Ports

  1 x Serial RS-232 (standard)
  1 x RJ45 (Native serial)
  2 additional on Expansion Module

  Ethernet Port

  1 x LAN RJ45 (Gigabit)
  1 additional on Expansion Module

  Wireless

  802.11 a/b/g/n/ac
  Bluetooth 4.0

  Cash Drawer Port

  12V/24V Cash Drawer Port (24V default; selectable by BIOS setting)

  Additional Video Out

  2nd VGA output, DP output

  Audio Ports

  1 x 3.5 mm Line out, 1 x 3.5 mm MIC in

  Speakers

  Two 2W internal speakers

  Operating Systems

  X2 Models:
  No Operating System
  Microsoft Windows 10 IoT Enterprise LTSB 64-bit

  X3, X5, X7 Models:
  No Operating System
  Microsoft Windows 7 Professional 64-bit
  Microsoft Windows POSReady7 64-bit
  Microsoft Windows 10 IoT Enterprise LTSB 64-bit

  Languages

  X2 Models:
  Windows 10 - 36 Language groups

  X3, X5, X7 Models:
  Windows 7 - 35 Language groups
  Windows POSReady7 - 35 Language groups
  Windows 10 - 36 Language groups

  Power Supply

  External 19VDC universal-type power supply brick
  AC input voltage: 100-240 VAC
  Input frequency: 50-60 Hz
  Maximum output power: 150W

  Power Consumption (Typical)

  X2 Model: 38W
  X3 Model: 60W
  X5 & X7 Models: 64W

  Max Touchcomputer Dimensions With Stand

  15.64" x 15.40" x 2.86" / 397.29 mm x 391.07 mm x 251.7 mm

  Max Touchcomputer Dimensions Without Stand

  15.63" x 14.37" x 2.67" / 397.19 mm x 354.24 mm x 67.73 mm

  Shipping Box Dimensions

  23.43" x 14.4" x 18.90" / 595 mm x 365 mm x 480 mm

  Weight (with stand and Expansion Module)

  17.09 lbs / 7.76 kg

  Weight (with stand)

  15.95 lbs / 7.24 kg

  Weight (without stand)

  10.26 lbs / 4.66 kg

  Shipping Weight (With stand)

  25.33 lbs / 11.5 kg

  Operating Temperature

  0°C to 35°C / 32°F to 95°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%
  Storage: 5% to 95% (38.7℃ max wet bulb temperature)

  Regulatory approvals and declarations

  UL/cUL, FCC, TUV, CE, CB, Mexico COC, C-Tick, VCCI, Argentina S-Mark, CCC

  Real-Time Clock

  lithium-ion battery

  MTBF

  50,000 hours demonstrated

  Mounting Options

  100mm VESA mount or secure base to tabletop/desktop

  Warranty

  3-year

  Sealability

  Touchscreen sealed to sub-bezel
  Touchscreen sealed to LCD

  Power Cables

  North American and European power cables included

  Other Features

  Serviceable internal components
  Threaded holes on bottom of stand for high and low display position
  Removable base with 100mm VESA mounting
  Kensington lock.

  What's in the Box

  X-Series Touchcomputer, North America Power Cord, EU Power Cord, Power Adapter – 150W: X3/X5/X7 Or 90W: X2, Adapter Cable RJ-45 to DB-9, Cable cover locking screw, Quick Installation Guide (QIG)

  Upgrade Options

  500GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E661266
  1TGB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274466
  256GB 2.5" SATA SSD - Elo P/N: E061525
  2GB DDR3L Memory SO-DIMM - Elo P/N: E273479
  4GB 1600 MHzDDR3L Memory SO-DIMM - Elo P/N: E273670
  8GB 1600 MHz DDR3L Memory SO-DIMM - Elo P/N: E273865
  4GB DDR4 Memory SO-DIMM - Elo P/N: E275416
  8GB DDR4 Memory SO-DIMM - Elo P/N: E275635

  Expansion Options

  Expansion Module for additional I/O port support
  2 x Serial RS-232 (Standard)
  1 x Giga LAN
  1 x Powered USB (+12V)
  1 x Cash Drawer (+24/+12V selectable)

  Replacement DC Power Supply

  E394965 - 19V/150W PS, Replacement power supply is available at an additional cost

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Fingerprint Reader (FPR) – Elo P/N: E001001
  Barcode Reader (BCR) – Elo P/N: E267080
  Customer Display (2x20 VFD) – Elo P/N: E001003
  7" LCD Customer-facing Display – Elo P/N:E807955 (without touch) - *Requires POLE MOUNT (E038989)
  7" LCD Customer-facing Display – Elo P/N: E791658 (AccuTouch®)
  10" LCD Customer-facing Display (10 touch) – Elo P/N E045337 (requires display mount kit E038989)
  10" LCD Customer-facing Display (no touch) – Elo P/N E138394 (requires pole mount kit E038989)
  Expansion Module – Elo P/N: E001006
  Webcam – Elo P/N: E275233
  Kit - USB Expansion Module – Elo P/N: E990645
  2D Barcode Scanner – Elo P/N: E926356
  Dallas Key Kit – Elo P/N E055348
  EMV Cradle for MagTek eDynamo - Elo P/N: E375343
  EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
  EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

  Stands, Mounts & Kits

  Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
  Rear Facing display Pole Mount Kit – Elo P/N: E038989
  Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
  Wallaby™ POS Stand (Black) - Elo P/N: E847771
  Wallaby™ POS Stand (Black) - Elo P/N: E185084

  *Windows 7 License

  Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. These systems include an upgrade to Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.
