1515L 15" Touchscreen Monitor
Be sure to check out the newer models - 1502L (Widescreen) or 1517L (4:3 aspect ratio)
Overview
The Elo 1515L 15-inch standard format touchscreen monitor delivers professional-grade built for touch reliability in an affordable compact footprint. The space-saving touchscreen includes a stable base, side controls and lock-out capability for public use. Whether used as a desktop or a wall-mounted unit, the 1515L offers flexibility for mounting and two touch technology options.

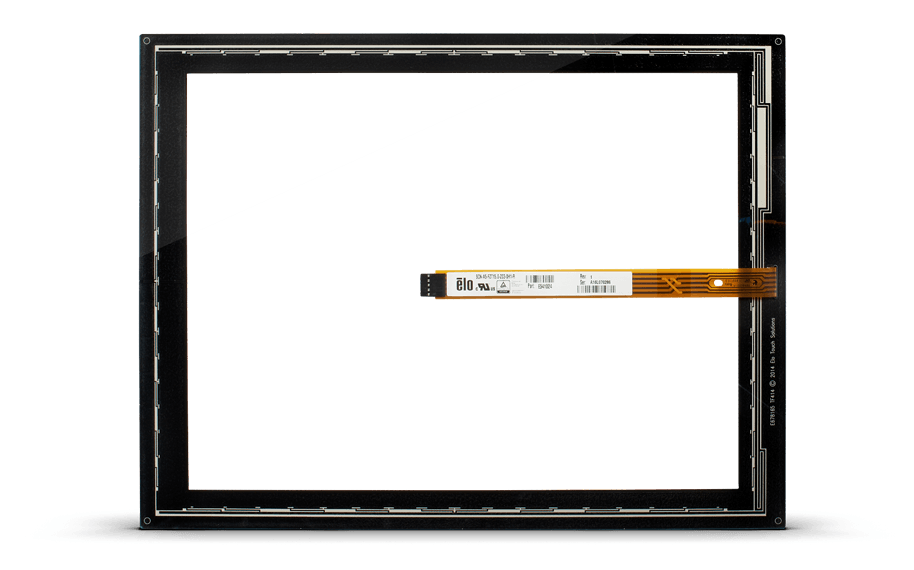

Integrated touch.The 15-inch touchscreen monitor features AccuTouch® five-wire resistive and IntelliTouch® surface acoustic wave (SAW) with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment. |
 |
 |

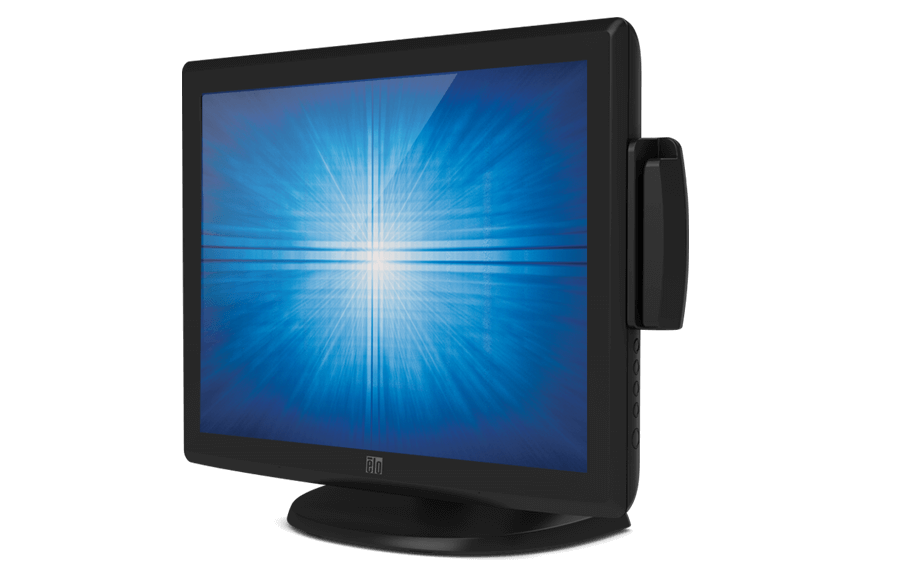

MSR ready.The optional ergonomic three-track mag stripe reader (MSR), is easily installed providing an elegant, integrated solution. The MSR is available in two versions: USB with keyboard emulation; and USB with human interface device (HID) class specification 1.1 |

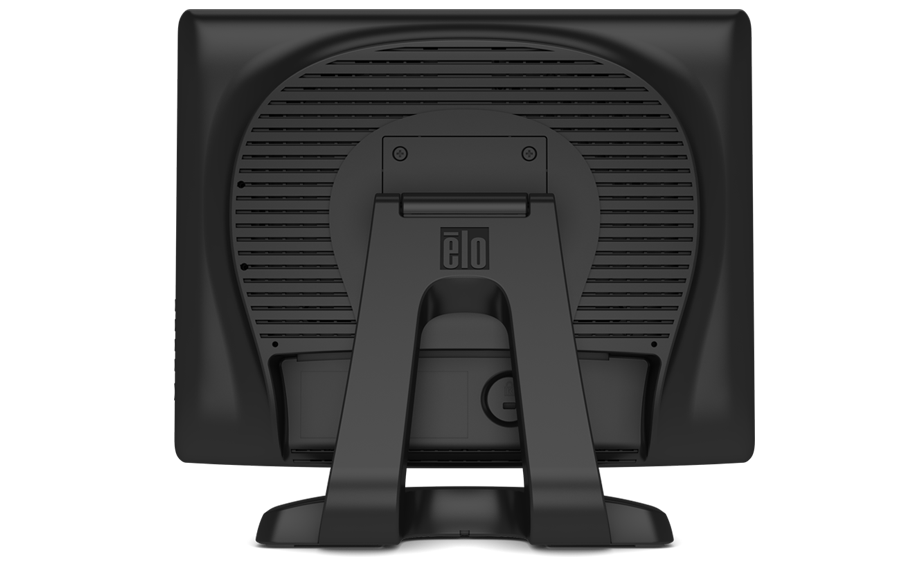

Flexible mounting.The Elo 1515L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. |
 |
 |
Commercial grade.The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
Other features.
- Economical and reliable
- Energy-saving LED backlights
- Up to 1024 x 768 resolution at 75 Hz
- Touchscreen sealed against dirt, dust and liquids
- Dual serial/USB interface
- Removable stand and VESA mounting option
- Mounting holes on stand bottom for tabletop security
- Digital on-screen display (OSD)
- Both Internal power and optional external 12VDC power supply
- Worldwide agency approvals
- Three-year standard warranty
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E700813
IntelliTouch (EMEA) - E399324
AccuTouch (Worldwide) - E210772
AccuTouch (EMEA) - E344320Enclosure Color
Dark Gray
Touch Technology & Capacity
5-Wire Resistive (AccuTouch®) - Single-Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Single TouchDiagonal Size
15'' diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
4:3
Active Area
12.0" x 9.0" / 304mm x 228mm
Resolution
1024 x 768
Other Supported Resolutions
640 x 350 70 Hz
640 x 480 60, 72, 75 Hz
640 x 480 66 Hz
720 x 400 at 70 Hz
800 x 600 at 56, 60, 72 or 75 Hz
832 x 624 at 75 Hz
1024 x 768 65 Hz
1024 x 768 60, 70, 75 HzViewing Angle
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colors
16.2 million
Brightness (typical)
LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nitsResponse Time-total (typical)
8 msec
Contrast Ratio
800:1
Input Video Format
Analog VGA on Female DB-15 connector
Input Video Frequency
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Power
Internal AC, power connector-C6 type
Input voltage range: 100-240VAC, 50/60Hz
Monitor input power connector: Coaxial power jack (2.0mm pin outer diameter, 6.4mm barrel inner diameter, 8.8mm Barrel depth)
Monitor input voltage range: 12VDC +/- 5%Power Consumption (Typical)
AC in, monitor only
ON: 9.60 W
SLEEP: 1.38 W
OFF: 0.30 WI/O Ports
VGA
DC jack
AC jack
USB Type B
RS232 (DB-9)On Screen Display

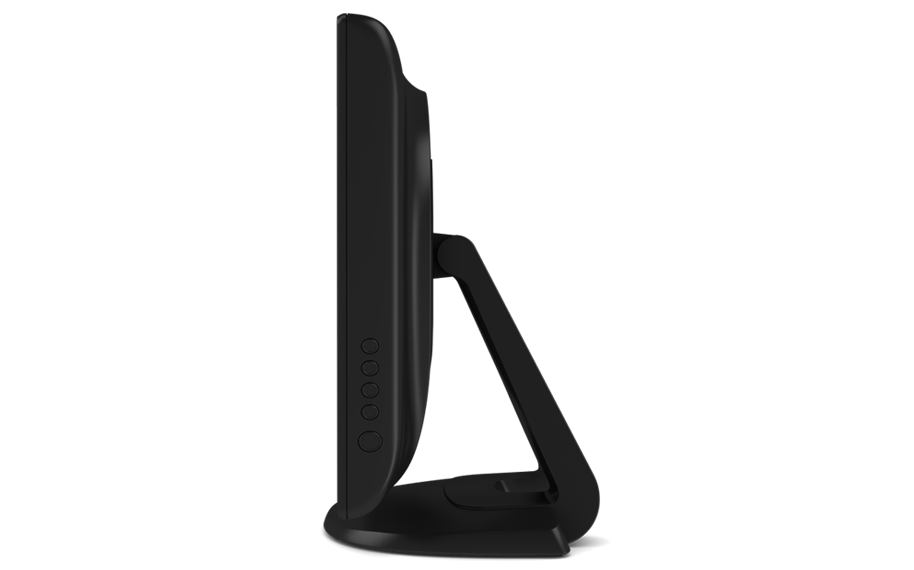

Accessible through switches along the bottom.
Controls: Menu, Power, Up, Down, Select
Settings: Auto-Adjust, Brightness, Contrast, H-position, V-position, Clock, Phase, Color Temperature, OSD Timeout, OSD Language, Sharpness, Recall Defaults, Information
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerMonitor Dimensions (without Stand)
11.0" x 13.8" x 2.2" / 280 mm x 350 mm x 55 mm
Monitor Dimensions (with Stand)
12.2" x 13.8" x 6.9" / 310 mm x 350 mm x 175 mm
Shipping Box Dimensions
10.2" x 17.5" x 15.0" / 260 mm x 445 mm x 380 mm
Weight (with stand)
10.6 lb / 4.8 kg
Shipping Weight (With stand)
15.4 lb / 7.0 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7° maximum wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Canada CUL, IC
China CCC
Europe CE
United Kingdom UKCA
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico NoM
RoHS, China RoHS, WEEE, REACHWhat's in the Box
Touch monitor
Quick Install Guide
3x Tie wraps
VGA cable
Touch USB cable
NA Power cable
EU Power cable (For E344320/E399324 only)
EEI LabelOptional Peripherals
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Australia power adapter and cable kit - Elo P/N: E637593
