2294L 21.5" Open Frame Touchscreen

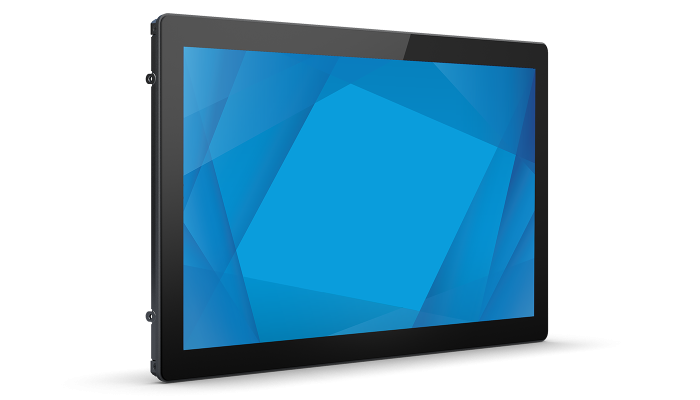

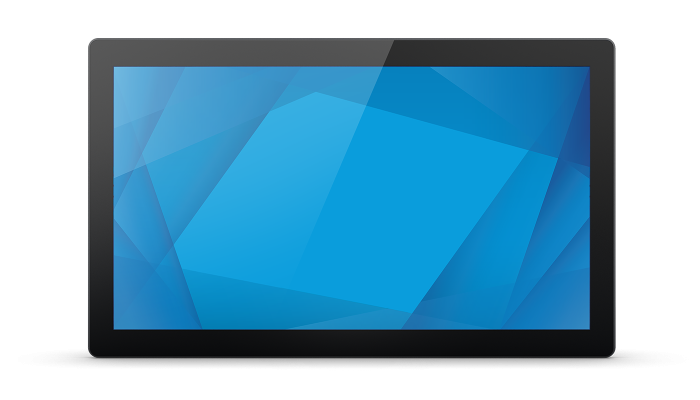

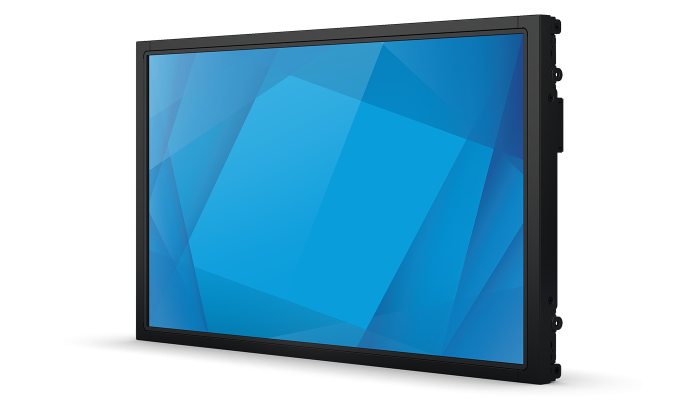

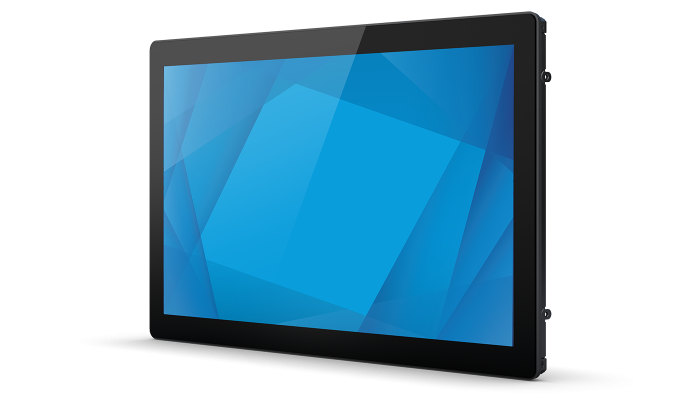

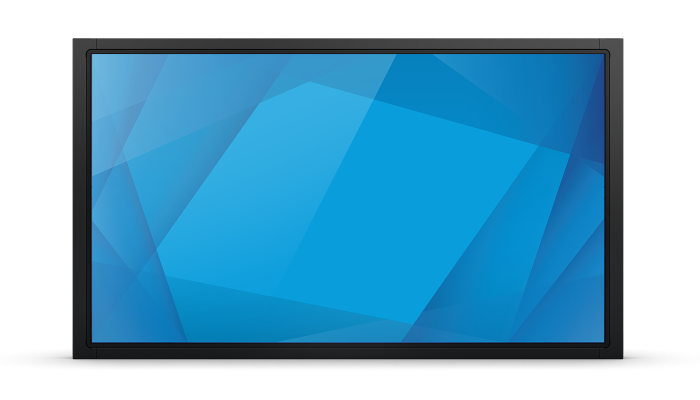

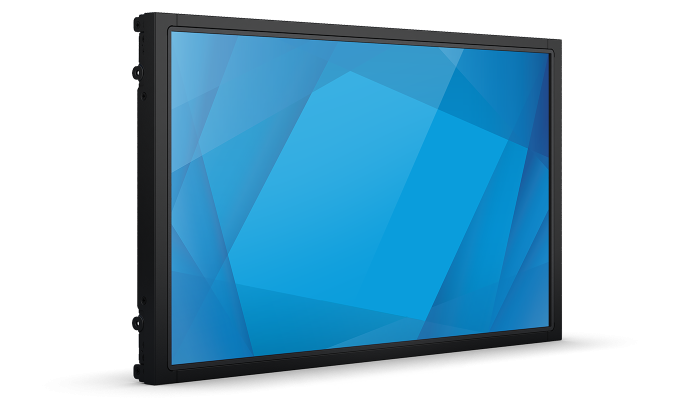

Elo 2294L Open Frame Touchscreen Display
The Elo 2294L 22-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Design Your Solution with Elo
-
Self-Service
-
Gaming
-
Healthcare
-
Industrial Automation
We chose Elo touchscreens to power our award-winning
BLUE FIRE Kiosk because they offered
the ease of
integration into our enclosure... We knew we could rely on
a durable,
long lifecycle product that will deliver a high
quality interactive experience for years
to come.
Ralf Hovenga
Managing Director, Pan Oston
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass
Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru
functionality for installations
that require a front layer of glass with
thickness’s up to 6mm or solutions that require
specific IP ratings.
Whether you need a flush-mounted display or one that is
fully-encased behind a cover glass, our robust PCAP Open
Frames are purpose-built for
durability in various applications and
environments: from self-service kiosks to highly
used gaming
cabinets to harsh industrial machines.
Interactive Open Frames From 10 to 55-inches
1093L 10" (16:10)
1291L 12" (4:3)
1590L 15" (4:3)
1593L 15" (16:9)
1598L 15" (4:3)
1790L 17" (5:4)
1990L 19" (5:4)
1991L 19" (5:4)
2094L 20" (16:9)
2293L 22" (16:9)
2294L 22" (16:9)
2494L 24" (16:9)
2794L 27" (16:9)
3243L 32" (16:9)
4243L 42" (16:9)
4343L 43" (16:9)
5543L 55" (16:9)
Connections
Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
-
Backed by our 3-year standard
warranty with an optional
extension to 4 or 5-years. -
Purpose built for touch at
the factory level -
Compliant with UL-60950 &
IK-07 impact testing -
Ready for use 24/7
-
Designed and tested to ensure
reliable long life in the field -
Well-suited for use in any high
traffic or harsh environments.
Specifications
-
Technical
Part Number(s)
IntelliTouch (Worldwide) - E327914
IntelliTouch Dual Touch (Worldwide) - E327528
TouchPro PCAP (Worldwide) - E330620Enclosure Color
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch
SAW (IntelliTouch® Surface Acoustic Wave) - Dual Touch
PCAP (TouchPro® Projected Capacitive) - 10 TouchTouch Interface
TouchPro PCAP, IntelliTouch DT - USB 2.0
IntelliTouch - Dual serial/USB 2.0Diagonal Size
21.5'' diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Thru
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerAspect Ratio
16:9
Active Area
18.76" x 10.55" / 476.64mm x 268.11mm
Resolution
1920 x 1080
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60HzViewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colors
16.7 million
Brightness (typical)
LCD panel: 250 nits
IntelliTouch: 225 nits
IntelliTouch Dual-Touch: 225 nits
TouchPro PCAP: 225 nitsResponse Time-total (typical)
14 msec
Contrast Ratio
1000:1
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a - Supports later versions of Display Port video inputInput Video Frequency
Horizontal: 30 - 82 KHz
Vertical: 50 - 75 HzVideo Interface
HDMI, VGA & Display Port
Power Supply
External DC - Optional power brick (sold separately)
Input power connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
Monitor + Adapter
ON (Default - 75% Brightness): 12.8 W
ON (Typical - 100% Brightness): 14.5 W
SLEEP: 1.5 W
OFF: 0.5WDimensions
Bezel: 20.12" x 11.74" x 1.65" / 511.8mm x 298.2mm x 42mm
Zero-Bezel: 20.31" x 12.24" x 1.49" / 516mm x 311mm x 37.9mmShipping Box Dimensions
24.41" x 16.65" x 7.48" / 620mm x 423mm x 190mm
Weight (Unpackaged)
11.24 lbs / 5.1 kg
Weight (Packaged)
18.08 lbs / 8.2 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 10% to 95%Sealability
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50,000 hours demonstrated
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125Regulatory approvals and declarations
Australia RCM
Canada cUL, IC
China CCC
Europe CE TUV
United Kingdom UKCA
Japan VCCI
Korea KCC
Mexico CoC
Taiwan BSMI
United States UL, FCC
International CB
Russia EAC
RoHS, China RoHS, WEEEMounting Options
VESA 4-hole 100mm mounting interface on rear of unit
2-hole mounting interface on all 4 sides
Front mount with optional bezel kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Rack mount with optional kit (IntelliTouch Models see Part Numbers for details - Not for use with TouchPro PCAP Models)
Flush mount with included brackets (TouchPro PCAP Models see Part Numbers for details)What's in the Box
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
Quick Install Guide
For Zero-Bezel Models: Flush Mount Brackets w/Screws
For Bezeled - IntelliTouch Models: “L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheetOptions / Peripherals / Upgrades
Remote OSD (RJ45) - Elo P/N: E483757
Replacement Cable Kit (HDMI, VGA, USB and Serial cables) - Elo P/N: E546861
Cable Kit DVI-D to HDMI – Elo P/N: E538507
Cable Kit DP to DP – Elo P/N: E582895
North America power adapter and cable kit - Elo P/N: E005277
European & Korea power adapter and cable kit - Elo P/N: E571601
UK power adapter and cable kit - Elo P/N: E180092
China power adapter and cable kit - Elo P/N: E558862
Taiwan power adapter and cable kit - Elo P/N: E818655
Japan power adapter and cable kit - Elo P/N: E182546
Argentina power adapter and cable kit - Elo P/N: E887099
Australia power adapter and cable kit - Elo P/N: E637593
IntelliTouch Stylus Pen - Elo P/N: D82064-000
Elo 20-inch & 22-inch Wide Flush-mount Bracket - Elo P/N: E190706
Elo 22-inch Rack-mount Bracket - Elo P/N: E462672 (See Mounting Options Spec for Compatibility)
Elo 22-inch Wide Front-mount Bezel - Elo P/N: E668194 (See Mounting Options Spec for Compatibility)
Elo 22-inch – Wide L Bracket Kit – Elo P/N: E530432
Power DC 24V/DC 12V Converter - Elo P/N: E239980
Elo Backpack® 4 (Value Model)- Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359Optional PCAP Stylus Pen
E066148
