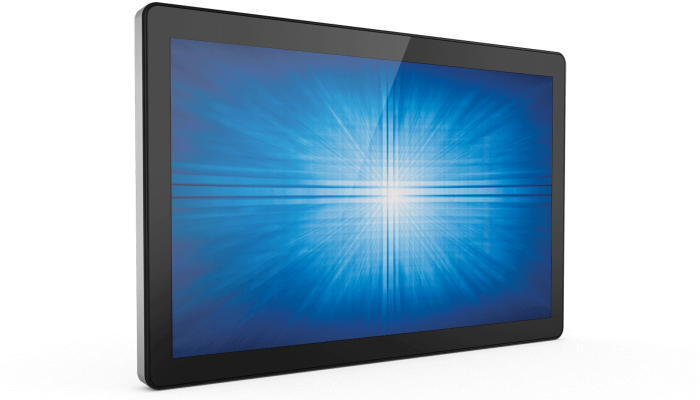

22-inch I-Series for Windows (1.0) (Discontinued April 2020)
How to Buy

This product has been discontinued. Please see the replacement model - 22" I-Series for Windows (2.0).


Overview

The multi-purpose fixed tablet form factor 21.5-inch I-Series for Windows interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet durable fixed tablet form factor at only 1.8 inches thick. The I-Series is designed for easy in-field system upgrades and ease of serviceability bringing reliability and performance with the latest developments in touchscreen technology. The fully integrated I-Series is ideal for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical environments. And with flexible mounting options in portrait, landscape and tabletop orientation using Elo wall, floor and tabletop mounting accessories, application use is endless.

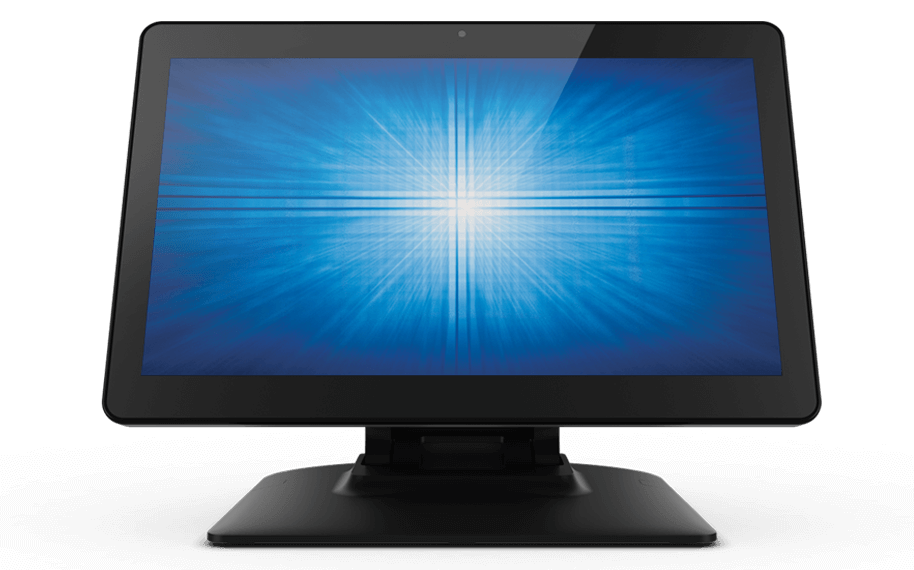

Processing power.

The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS.

 Image of item
Image of item

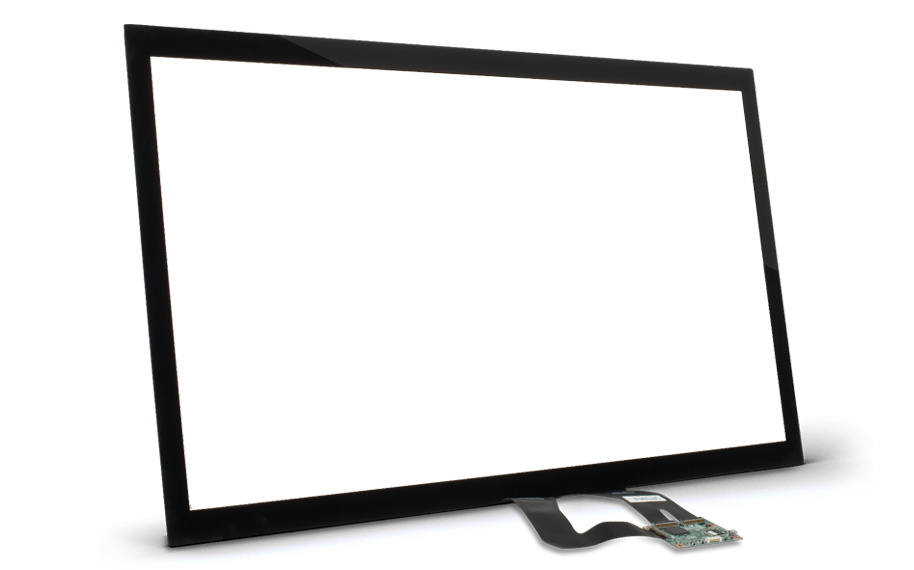

Integrated touch.

Available in two wide-format display sizes, 15.6 inches and 21.5 inches, the I-Series for Windows all-in-one touchscreen features our industry-leading TouchPro™ projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease.

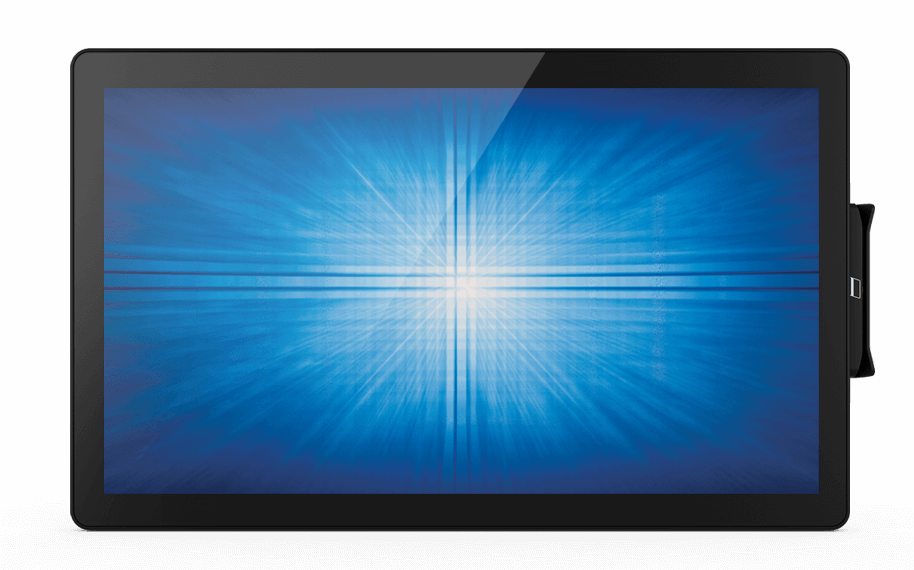

Configured perfection.

Create additional interactive touchpoints with our built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.

 Image of item
Image of item

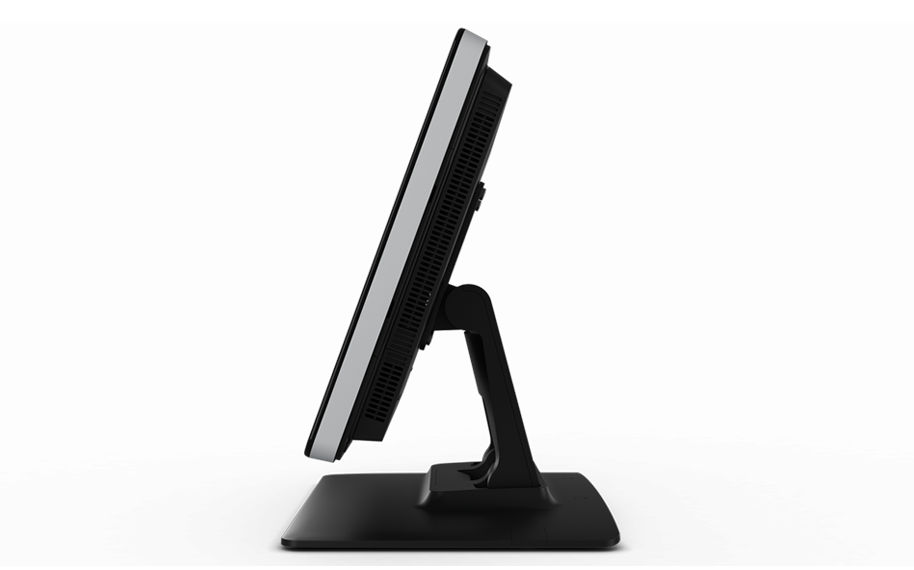

Commercial grade.

The 21.5-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. The 21.5-inch I-Series meets EN62262 IK06 & UL60950 ball drop impact protection.
Other features.
  • Micro USB for Elo peripherals (i2: 2 x USB 3.0/i5: 4 x USB 3.0)
  • Wifi 802.11a/b/g/n and Bluetooth 4.0
Similar products.
I-Series for Android 10-inch AiO Touchscreen
I-Series for Android 15-inch AiO Touchscreen
I-Series for Android 22-inch AiO Touchscreen
I-Series for Windows 15-inch AiO Touchscreen
2002L 20" Touchscreen Monitor

Specifications

  • Technical

    Part Number(s)

    PCAP i2 No OS (Worldwide) - E222787
    PCAP i2 Win7 (Worldwide) - E222788
    PCAP i2 Win10 (Worldwide) - E970879
    PCAP i5 No OS (Worldwide) - E222793
    PCAP i5 Win7 (Worldwide) - E222794
    PCAP i5 Win10 (Worldwide) - E971081

    Enclosure Color

    Black

    Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) - 10 Touch

    Processor

    i2: Intel® Celeron® 1.6 GHz (up to 2.24 GHz) N3160 Quad-Core Processor; 2MB L2 Cache
    i5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart Cache

    Graphics

    i2: Intel HD Graphics 400
    i5: Intel HD Graphics 530

    BIOS

    AMI

    Memory (RAM)

    i2: 2GB DDR3L SODIMM on 1 of 2 slot (Expandable to 8GB)
    NOTE: Maximum memory using 2 available slots; Replaceable up to 8GB maximum, SODIMM DDR3L-1600

    i5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
    NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133

    Storage

    128GB 2.5" 7mm SATA SSD, 72 TBW

    Diagonal Size

    21.5'' diagonal, Active matrix TFT LCD (LED)

    On-Screen Display (OSD)

    Power, Brightness Up, Brightness Down, Volume Up, Volume Down

    Aspect Ratio

    16:9

    Active Area

    18.6" x 10.5" / 476mm x 267.8mm

    Resolution

    Full HD 1920 x 1080 @ 60Hz

    Number of Colors

    16.7 million

    Brightness (typical)

    LCD Panel: 250 nits
    PCAP: 225 nits

    Response Time-total (typical)

    30 msec

    Contrast Ratio

    3000:1

    Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

    AV Capability

    Front-facing HD webcam
    Stereo speakers

    Webcam

    Max resolution: 1920 x 1080 30fps (MJPEG)
    Auto Focus @ 10cm ~ Infinity
    Automatic Exposure Control
    Automatic White Balance Control
    Automatic Gain Control

    USB Ports

    i2: 2 x USB 3.0, 3 x Micro USB for Elo peripherals
    i5: 4 x USB 3.0, 3 x Micro USB for Elo peripherals

    Ethernet Port

    1 x LAN RJ45 (Gigabit)

    Wireless

    Wi-Fi 802.11 a/b/g/n/ac

    Bluetooth

    Bluetooth 4.0

    Additional Video Out

    2nd Micro HDMI out

    Audio Ports

    1 x 3.5mm line out

    Speakers

    Two 2W internal speakers

    OS

    No OS
    Windows 7*
    Windows 10

    Languages

    Windows 7 - 35 Language groups

    Power

    Maximum output power: 90W (Max Draw: 100W)
    Maximum output power: 150W (Max Draw: 170W)

    Power Supply

    External 19VDC universal-type power supply brick

    Input Voltage

    100 - 240 VAC 50/60Hz

    Power Consumption (Typical)

    i2: 43.97 W
    i5: 90.63 W

    Dimensions

    20.6" x 12.76" x 1.8" / 524mm x 324mm x 45mm

    Shipping Box Dimensions

    26.97" x 19.41" x 7.09" / 685mm x 493mm x 180mm

    Weight (Unpackaged)

    12.05 lbs / 5.47 kg

    Weight (Packaged)

    17.65 lbs / 8.03 kg

    Operating Temperature

    0°C to 35°C / 32°F to 95°F

    Storage Temperature

    -20°C to 60°C / -4°F to 140°F

    Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

    Regulatory approvals and declarations

    UL/cUL, FCC, TUV, CB, CE, VCCI

    Real-Time Clock

    lithium-ion battery

    MTBF

    50,000 hours demonstrated

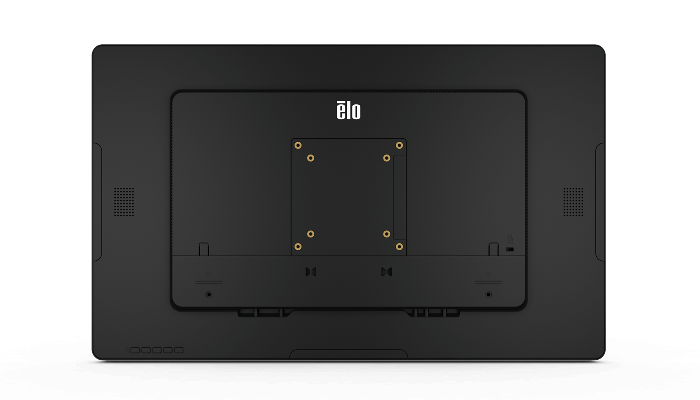

    Mounting Options

    VESA - 75mm x 75mm and 100mm x 100mm
    Wall/pole mount or secure base to tabletop/desktop

    Warranty

    3-year

    Extended Service Options

    4 year warranty coverage - Elo P/N: E819598
    5 year warranty coverage - Elo P/N: E819795
    3 year warranty coverage + AUR - Elo P/N: E820186
    4 year warranty coverage + AUR - Elo P/N: E820388
    5 year warranty coverage + AUR - Elo P/N: E820582

    Sealability

    Touchscreen sealed to sub-bezel
    Touchscreen sealed to LCD

    Power Cables

    Power Cables: North American and European power cables included; Other regions available upon request

    What's in the Box

    Windows I-Series Touchcomputer
    US Power Cable
    European Power Cable
    Power Adapter
    Quick Install Guide

    Upgrade Options

    320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069

    Replacement DC Power Supply

    i2 - 19V DC power brick (90W) - Elo P/N: E395155
    i5 - 19V DC power brick (150W) - Elo P/N: E059701

    Optional PCAP Stylus Pen

    E066148

    Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Barcode Reader (BCR) – Elo P/N: E093433
    GPIO Cable - Elo P/N: E211544
    Kit - USB Expansion Module – Elo P/N: E990645
    2D Barcode Scanner – Elo P/N: E926356
    EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
    EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
    EMV Cradle for MagTek eDynamo - Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

    Stands, Mounts & Kits

    Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
    Tabletop Stand for 22'' I-Series (100mm VESA) - Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
    Wall Mount Bracket for 15'' & 22'' I-Series (75mm or 100mm VESA) - Elo P/N: E143088
    Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260

    *Windows 7 License

    Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.

Accessories

(10)

Upgrades, add-ons, and more.
Image of item

Wallaby™ Self-Service Stands (Gen 2 - Replaced by new model)

Image of item

EMV Cradles

Image of item

Pole Stands

Image of item

Tabletop Stands

Image of item

Expansion Module for Windows

Image of item

NFC/RFID (Replaced by new RFID)

Image of item

Elo Edge Connect™ Magnetic Stripe Reader (MSR)

Image of item

Shelf Mount

Image of item

X-Series Stand

Image of item

1D Barcode Reader (Gen 1 - Replaced by 2D Barcode Scanner)

Configurations

(6)

Refine your search:
Compare Compare
Image of item
E222787
  • TouchPro® - PCAP
  • No OS
  • Intel® Celeron® 1.6 GHz (up to 2.24 GHz) N3160 Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 2GB
Compare Compare
Image of item
E222788
  • TouchPro® - PCAP
  • Windows 7*
  • Intel® Celeron® 1.6 (up to 2.24 GHz) GHz N3160 Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 2GB
Compare Compare
Image of item
E970879
  • TouchPro® - PCAP
  • Windows 10
  • Intel® Celeron® 1.6 GHz (up to 2.24 GHz) N3160 Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 2GB
Compare Compare
Image of item
E222793
  • TouchPro® - PCAP
  • No OS
  • Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 4GB
Compare Compare
Image of item
E222794
  • TouchPro® - PCAP
  • Windows 7*
  • Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 4GB
Compare Compare
Image of item
E971081
  • TouchPro® - PCAP
  • Windows 10
  • Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor
  • 128GB 2.5" 7mm SATA SSD
  • 4GB
