15-inch I-Series for Windows (1.0) (Discontinued April 2020)
This product has been discontinued. Please see the replacement model - 15" I-Series for Windows (2.0).
Overview
The multi-purpose fixed tablet form factor 15.6-inch I-Series for Windows interactive signage delivers commercial-grade computing with the capabilities, security and enterprise infrastructure of a powerful Windows-based platform with a sleek, ultra-thin, yet durable fixed tablet form factor at only 1.5 inches thick. The I-Series is designed for easy in-field system upgrades and ease of serviceability bringing reliability and performance with the latest developments in touchscreen technology. The fully integrated I-Series is ideal for immersive interactive applications in all commercial markets including retail, hospitality, gaming, corporate and medical environments. And with flexible mounting options in portrait, landscape and tabletop orientation using Elo wall, floor and tabletop mounting accessories, application use is endless.

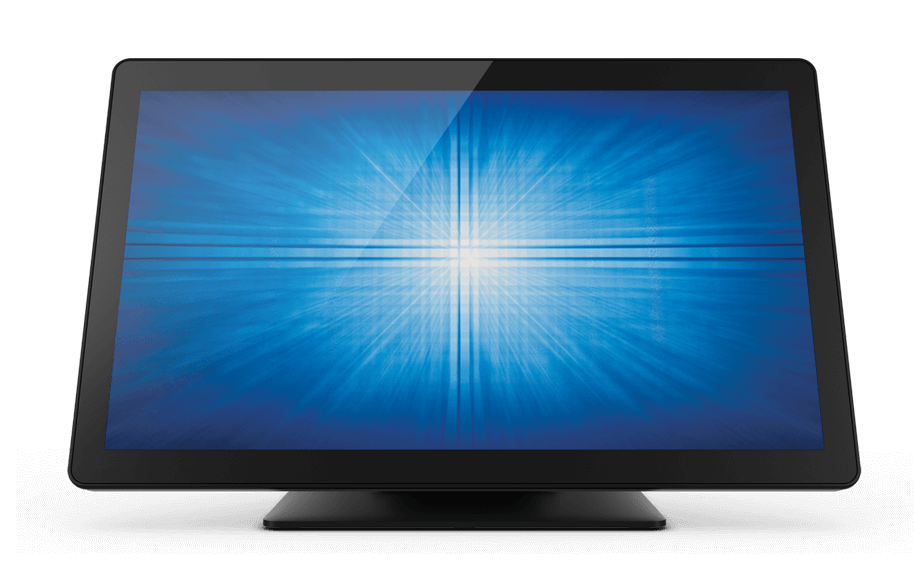

Processing power.The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics for top-end performance or the fan-less Braswell Celeron are ideal for ultra-low noise environments. The I-Series for Windows can be pre-installed with Windows 10, Windows 8.1, or Windows 7, or with no OS. |
 |
 |

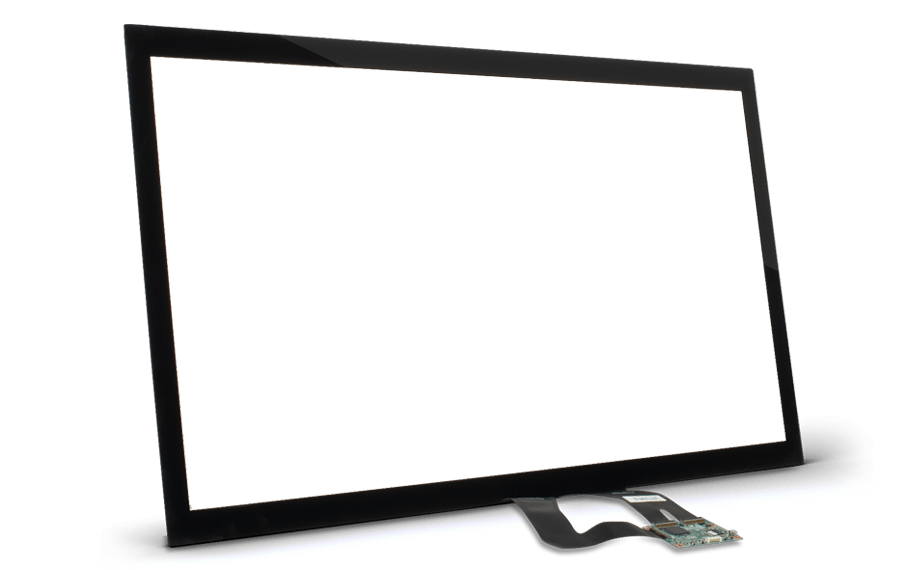

Integrated touch.Available in two wide-format display sizes, 15.6 inches and 21.5 inches, the I-Series for Windows all-in-one touchscreen features our industry-leading TouchPro™ projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease. |

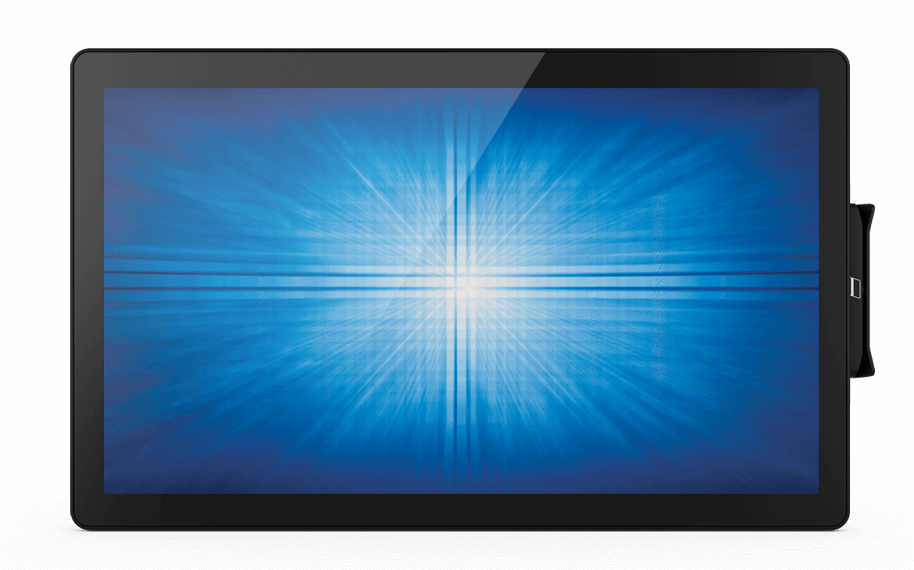

Configured perfection.Create additional interactive touchpoints with our built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system. |
 |
 |

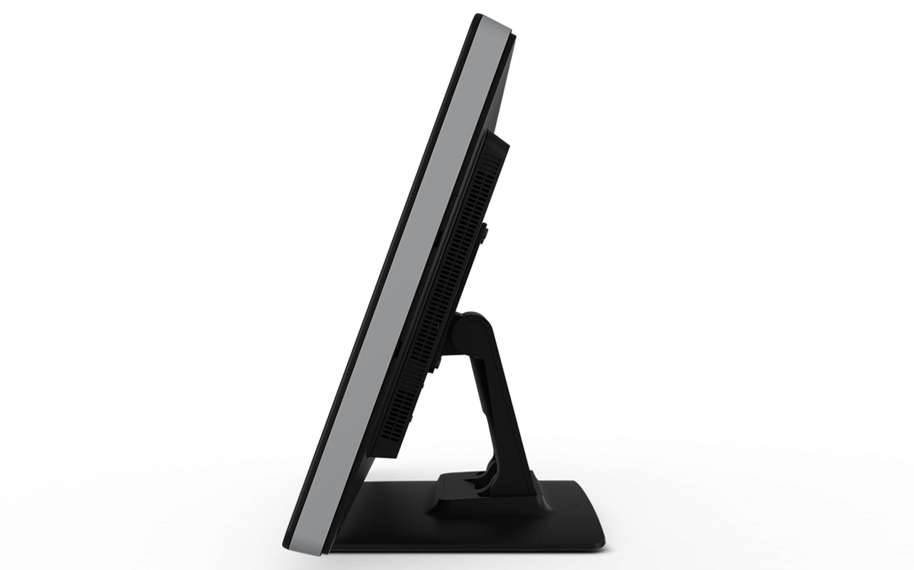

Commercial grade.The 15.6-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. |
Other features.
- Micro USB for Elo peripherals (i2: 2 x USB 3.0/i5: 4 x USB 3.0)
- Wifi 802.11a/b/g/n and Bluetooth 4.0
Similar products.
I-Series for Android 10-inch AiO TouchscreenI-Series for Android 15-inch AiO Touchscreen
1502L 15" Touchscreen Monitor
I-Series for Android 22-inch AiO Touchscreen
I-Series for Windows 22-inch AiO Touchscreen
Specifications
-
Technical
Part Number(s)
PCAP i2 No OS (Worldwide) - E222775
PCAP i2 Win7 (Worldwide) - E222776
PCAP i2 Win10 (Worldwide) - E970376
PCAP i5 No OS (Worldwide) - E222781
PCAP i5 Win7 (Worldwide) - E222782
PCAP i5 Win10 (Worldwide) - E970665Enclosure Color
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) - 10 Touch
Processor
i2: Intel® Celeron® 1.6 GHz (up to 2.24 GHz) N3160 Quad-Core Processor; 2MB L2 Cache
i5: Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart CacheGraphics
i2: Intel HD Graphics 400
i5: Intel HD Graphics 530BIOS
AMI
Memory (RAM)
i2: 2GB DDR3L SODIMM on 1 of 2 slot (Expandable to 8GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 8GB maximum, SODIMM DDR3L-1600
i5: 4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133Storage
128GB 2.5" 7mm SATA SSD, 72 TBW
Diagonal Size
15.6'' diagonal, Active matrix TFT LCD (LED)
On-Screen Display (OSD)
Power, Brightness Up, Brightness Down, Volume Up, Volume Down
Aspect Ratio
16:9
Active Area
13.6" x 7.6" / 344.2mm x 193.5mm
Resolution
Full HD 1920 x 1080 @ 60Hz
Number of Colors
262,000
Brightness (typical)
LCD Panel: 300 nits
PCAP: 270 nitsResponse Time-total (typical)
25 msec
Contrast Ratio
700:1
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
AV Capability
Front-facing HD webcam
Stereo speakersWebcam
Max resolution: 1920 x 1080 30fps (MJPEG)
Auto Focus @ 10cm ~ Infinity
Automatic Exposure Control
Automatic White Balance Control
Automatic Gain ControlUSB Ports
i2: 2 x USB 3.0, 3 x Micro USB for Elo peripherals
i5: 4 x USB 3.0, 3 x Micro USB for Elo peripheralsEthernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth
Bluetooth 4.0
Additional Video Out
2nd Micro HDMI out
Audio Ports
1 x 3.5mm line out
Speakers
Two 2W internal speakers
OS
No OS
Windows 7*
Windows 10Languages
Windows 7 - 35 Language groups
Power
Maximum output power: 65W (Max Draw: 74W)
Maximum output power: 90W (Max Draw: 100W)Power Supply
External 19VDC universal-type power supply brick
Input Voltage
100 - 240 VAC 50/60Hz
Power Consumption (Typical)
i2: 33.97 W
i5: 80.63 WDimensions
15.2" x 9.8" x 1.5" / 387mm x 249mm x 39mm
Shipping Box Dimensions
19.29" x 14.96" x 5.51" / 490mm x 380mm x 140mm
Weight (Unpackaged)
5.64 lbs / 2.56 kg
Weight (Packaged)
9.71 lbs / 4.41 kg
Operating Temperature
0°C to 35°C / 32°F to 95°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%
Storage: 5% to 95%Regulatory approvals and declarations
UL/cUL, FCC, TUV, CB, CE, VCCI
Real-Time Clock
lithium-ion battery
MTBF
50,000 hours demonstrated
Mounting Options
VESA - 75mm x 75mm and 100mm x 100mm
Wall/pole mount or secure base to tabletop/desktopWarranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E819598
5 year warranty coverage - Elo P/N: E819795
3 year warranty coverage + AUR - Elo P/N: E820186
4 year warranty coverage + AUR - Elo P/N: E820388
5 year warranty coverage + AUR - Elo P/N: E820582Sealability
Touchscreen sealed to sub-bezel
Touchscreen sealed to LCDPower Cables
Power Cables: North American and European power cables included; Other regions available upon request
What's in the Box
Windows I-Series Touchcomputer
1 x US Power Cable
1 x European Power Cable
1 x Power Adapter
1 x Quick Install GuideUpgrade Options
320GB 5400 rpm Hard Disk Drive (HDD) - Elo P/N: E274069
Replacement DC Power Supply
i2 - 19V DC power brick (65W) - Elo P/N: E059025
i5 - 19V DC power brick (90W) - Elo P/N: E395155Optional PCAP Stylus Pen
E066148
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Barcode Reader (BCR) – Elo P/N: E093433
GPIO Cable - Elo P/N: E211544
Kit - USB Expansion Module – Elo P/N: E990645
2D Barcode Scanner – Elo P/N: E926356
EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930Stands, Mounts & Kits
Tabletop Stand for 15-inch Display (Black) - Elo P/N: E044162
Tabletop Flip Stand for 10'' & 15'' I-Series - Elo P/N: E924077
Elo Stand for 15-inch to 22-inch displays, 100mm VESA, compatible with rear-facing display pole mount kit E038989 - Elo P/N: E154446
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Wall Mount Bracket for 15'' & 22'' I-Series (75mm or 100mm VESA) - Elo P/N: E143088
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
mPOS Printer Stand (Black) - Elo P/N: E353950
mPOS Printer Stand (White) - Elo P/N: E353758
Wallaby™ POS Stand (Black) - Elo P/N: E949536
Wallaby™ POS Stand (White) - Elo P/N: E353758
Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E796783
Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E796965 + E797162
Slim Self-Service Countertop Stand (75mm or 100mm VESA) - Elo P/N: E514693
Slim Self-Service Floor Stand (75mm or 100mm VESA) - Elo P/N: E514881 + E515260*Windows 7 License
Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. These systems include an upgrade to Windows 10, depending on the license used, and subject to the licensing terms of the Windows software, you may temporarily use the loaded Windows version before upgrading.
